Sleeve Nut Cap End Mounting Style TE for 2MNR Series Tie Rod Cylinders | Parker

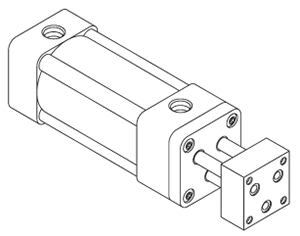

 2MNR TE Mounting Style

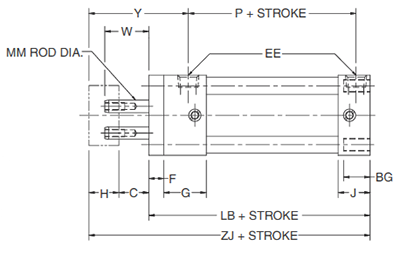

2MNR TE Mounting Style Head Dimensions2MNR TE Mounting Style Body Dimensions

Style TE

 Bore Size
Rod Dia. MM BG  C
DD E
EE (NPTF)
F G H
J R W Y LB P ZF ZJ
1-1/2 8 0.45 3/4 1/4-28 2 1/4 3/8 1-7/16 3/4 15/16 1.43 1.10 2-3/4 4 2-5/16 5.10 5-1/2
 2 12 0.48 3/4 5/16-24 2-1/2 1/4 3/8 1-7/16 3/4 15/16 1.84 1.10 2-3/4 4 2-5/16 5.10 5-1/2
 2-1/2 16 0.48 3/4 5/16-24 3 3/8 3/8 1-7/16  1 15/16 2.19 1.35 3-1/16 4-1/8 2-3/8 5.35 5-7/8
 3-1/4 16 0.50 3/4 3/8-24 3-3/4 1/2 5/8 1-11/16  1 1-3/16 2.76 1.10 3-7/16 4-7/8 2-5/8 5.23 6-5/8
 4 16 0.50 3/4 3/8-24 4-1/2 1/2 5/8 1-11/16  1 1-3/16 3.32 1.10 3-7/16 4-7/8 2-5/8 5.98 6-5/8
