Cap Clevis Mount Styles BB & BC for 4MA/4ML Series Tie Rod Cylinders, 6" & 8" Bore Sizes | Parker

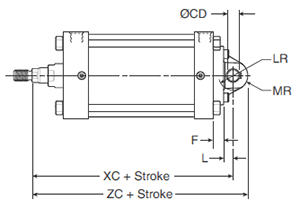

Style BB (NFPA MP1) - Cap Fixed Clevis


 4MA Large Bore Mounting Style BB



 4MA Large Bore Mounting Style BB Head4MA Large Bore Mounting Style BB Body

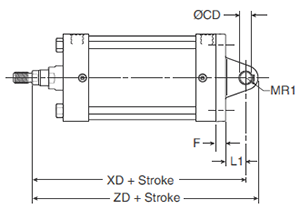

Style BC (NFPA MP2) - Cap Detachable Clevis

4MA Large Bore Mounting Style BC



 4MA Large Bore Mounting Style BC Head4MA Large Bore Mounting Style BC Body

Styles BB & BC

 Bore Size
 Rod # Rod Dia. MM CB +.000 -.002 CD CW
 E
 F L LR LR1 MR MR1 XC XD ZC ZD
6 1 1-3/8 1.500 1.001 0.750 6.500 0.750 0.750 1.250 1.500 1.125 1.000 8.125 8.875 9.250 9.875
6 3 1-3/4 1.500 1.001 0.750 6.500 0.750 0.750 1.250 1.500 1.125 1.000 8.375 9.125 9.500 10.125
8 1 1-3/8 1.500 1.001 0.750 8.500 0.750 0.750 1.250 1.500 1.125 1.000 8.250 9.000 9.375 10.000
8 3 1-3/4 1.500 1.001 0.750 8.500 0.750 0.750 1.250 1.500 1.125 1.000 8.500 9.250 9.625 10.250
