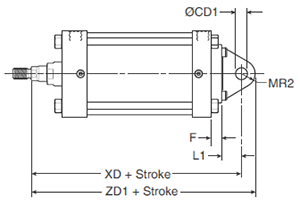

Style BE (NFPA MP4) - Cap Detachable Eye
|
  |
Style BE
| Bore Size |
Rod # | Rod Dia. MM | CB | +.002 +.004 CD1 | E |
F | L1 | MR2 | XD | ZD1 |
| 6 | 1 | 1-3/8 | 1.500 | 1.000 | 6.500 | 0.750 | 1.500 | 1.125 | 8.875 | 10.000 |
| 6 | 3 | 1-3/4 | 1.500 | 1.000 | 6.500 | 0.750 | 1.500 | 1.125 | 9.125 | 10.250 |
