Side End Angle Mounting Style CB for 4MA/4ML Series Tie Rod Cylinders, 6" and 8" Bore Sizes | Parker

Style CB (NFPA MS1) - Side End Angle


4MA Large Bore CB Mounting Style

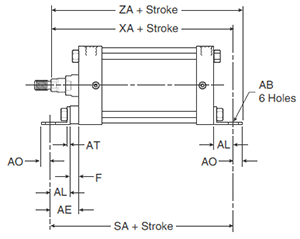

4MA-large-CB-head-dimensions.png 4MA-large-CB-body-dimensions.png



CB  Dimensions

 Bore Size
Rod # Rod Dia. MM AB
 AE AH AL
AO
AT
E
F
S
SA
 ZA
6 1 1-3/8 0.813 2.125 3.250 1.375 0.625 0.188 6.500 0.750 5.250 8.500 8.65
6 3 1-3/4 0.813 2.125 3.250 1.375 0.625 0.188 6.500 0.750 5.250 8.500 8.875
8 1 1-3/8 0.813 1.813 4.250 1.813 0.688 0.250 8.500 - 7.125 8.750 9.250
8 3 1-3/4 0.813 1.813 4.250 1.813 0.688 0.250 8.500 - 7.125 8.750 9.500
