Square Mounting Styles JB & HB for NFPA 4MA / 4ML Series - 8" Bore Tie Rod Cylinders | Parker

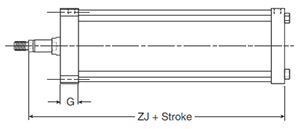

Style JB (NFPA ME3) - Head Square

 4MA Large Bore Mounting Style JB




4MA Large Bore Mounting Style JB Head4MA Large Bore Mounting Style JB Body

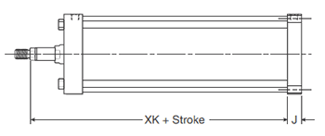

Style HB (NFPA ME4) - Cap Square

4MA Large Bore Mounting Style HB



 4MA Large Bore Mounting Style HB Head4MA Large Bore Mounting Style HB Body

Styles JB & HB

 Bore Size
Rod # Rod Dia. MM E
EB
G J TE
XK ZJ
8 1 1-3/8 8.500 0.688 1.810 1.440 7.570 5.313 6.750
8 3 1-3/4 8.500 0.688 1.810 1.440 7.570 5.563 7.000
