Sleeve Nut Mounting Style TE for 4MA/4ML Series Tie Rod Cylinders, 6" and 8" Bore Sizes | Parker
Style TE (NFPA MX5) - Sleeve Nut
|
  |

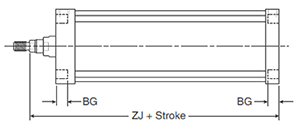

Style TE
| Bore Size |
Rod # | Rod Dia. MM | AA |
BG | DD |
E |
R | ZJ |
| 6 | 1 | 1-3/8 | 6.900 | 0.500 | 1/2-20 | 6.500 | 4.880 | 6.625 |
| 6 | 3 | 1-3/4 | 6.900 | 0.500 | 1/2-20 | 6.500 | 4.880 | 6.875 |
| 8 | 1 | 1-3/8 | 9.100 | 0.620 | 5/8-18 | 8.500 | 6.440 | 6.750 |
| 8 | 3 | 1-3/4 | 9.100 | 0.620 | 5/8-18 | 8.500 | 6.440 | 7.000 |
