Cap Mounting Styles BB, BC & BE for 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore Sizes | Parker

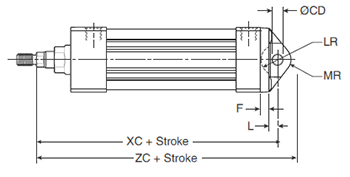

Style BB - Cap Fixed Clevis
|
  |

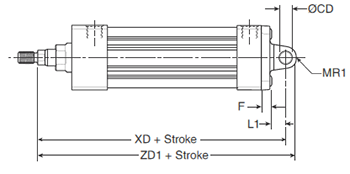

Style BC - Cap Detachable Clevis
|
|

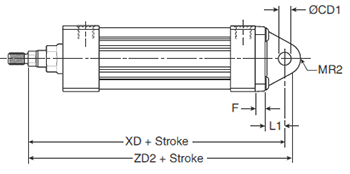

Style BE - Cap Detachable Eye
|
|
Styles BB, BC & BE
| Bore Size |
Rod # | Rod Dia. MM | CB |
+.000 -.002 CD |
+.002 +.004 CD1 |
CW | E* | F |
L | LR | L1 | MR | MR1 | MR2 | XC | XD | ZC | ZD1 | ZD2 |
| 1-1/2 | 1 | 5/8 | 0.750 | .501 | .500 | .500 | 2.00 | .375 | .375 | 0.750 | 0.750 | .625 | .500 | .625 | 5.375 | 5.750 | 6.000 | 6.250 | 6.375 |
| 1-1/2 | 2 | 1 | 0.750 | .501 | .500 | .500 | 2.00 | .375 | .375 | 0.750 | 0.750 | .625 | .500 | .625 | 5.750 | 6.125 | 6.375 | 6.625 | 6.750 |
| 2 | 1 | 5/8 | 0.750 | .501 | .500 | .500 | 2.50 | .375 | .375 | 0.750 | 0.750 | .625 | .500 | .625 | 5.375 | 5.750 | 6.000 | 6.250 | 6.375 |
| 2 | 3 | 1 | 0.750 | .501 | .500 | .500 | 3.00 | .375 | .375 | 0.750 | 0.750 | .625 | .500 | .625 | 5.750 | 6.125 | 6.375 | 6.625 | 6.750 |
| 2-1/2 | 1 | 5/8 | 0.750 | .501 | .500 | .500 | 3.00 | .375 | .375 | 0.750 | 0.750 | .625 | .500 | .688 | 5.500 | 5.875 | 6.125 | 6.375 | 6.563 |
| 2-1/2 | 3 | 1 | 0.750 | .501 | .500 | .500 | 3.00 | .375 | .375 | 0.750 | 0.750 | .625 | .500 | .688 | 5.875 | 6.250 | 6.500 | 6.750 | 6.313 |
| 3-1/4 | 1 | 1 | 1.250 | .751 | .750 | .625 | 3.75 | .625 | .625 | 1.000 | 1.250 | .938 | .750 | .875 | 6.875 | 7.500 | 7.813 | 8.250 | 8.375 |
| 3-1/4 | 3 | 1-3/8 | 1.250 | .751 | .750 | .625 | 3.75 | .625 | .625 | 1.000 | 1.250 | .938 | .750 | .875 | 7.125 | 7.750 | 8.063 | 8.500 | 8.625 |
| 4 | 1 | 1 | 1.250 | .751 | .750 | .625 | 4.50 | .625 | .625 | 1.000 | 1.250 | .938 | .750 | .875 | 6.875 | 7.500 | 7.813 | 8.250 | 8.375 |
| 4 | 3 | 1-3/8 | 1.250 | .751 | .750 | .625 | 4.50 | .625 | .625 | 1.000 | 1.250 | .938 | .750 | .875 | 7.125 | 7.750 | 8.063 | 8.500 | 8.625 |
| 5 | 1 | 1 | 1.250 | .751 | .750 | .625 | 5.50 | .625 | .625 | 1.000 | 1.250 | .938 | .750 | .875 | 7.125 | 7.750 | 8.063 | 8.500 | 8.625 |
| 5 | 3 | 1-3/8 | 1.250 | .751 | .750 | .625 | 5.50 | .625 | .625 | 1.000 | 1.250 | .938 | .750 | .875 | 7.125 | 8.000 | 8.313 | 8.750 | 8.875 |
* The 5" bore BB and BE bracket is the same as the 3-1/4" BB and BE bracket.
The outer square dimension E is 3.75" and use SHCS.
