Side Lug Mounting Style C for 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore | Parker
Style C - Side Lug
|
  |

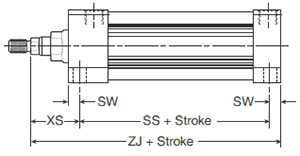

Mounting Style C Dimensions
| Bore Size |
Rod # | Rod Dia. MM | E |
LH |
SB | ST | ST1 |
ST2 | SW |
SW1 | TS | US | XS | SS | ZJ |
| 1-1/2 | 1 | 5/8 | 2.00 | 0.993 | 0.438 | 0.500 | 1.000 | 0.120 | 0.375 | 0.495 | 2.750 | 3.500 | 1.375 | 2.875 | 4.625 |
| 1-1/2 | 2 | 1 | 2.00 | 0.993 | 0.438 | 0.500 | 1.000 | 0.120 | 0.375 | 0.495 | 2.750 | 3.500 | 1.750 | 2.875 | 5.000 |
| 2 | 1 | 5/8 | 2.50 | 1.243 | 0.438 | 0.500 | 1.250 | 0.120 | 0.375 | 0.495 | 3.250 | 4.000 | 1.375 | 2.875 | 4.625 |
| 2 | 3 | 1 | 2.50 | 1.243 | 0.438 | 0.500 | 1.250 | 0.120 | 0.375 | 0.495 | 3.250 | 4.000 | 1.750 | 2.875 | 5.000 |
| 2-1/2 | 1 | 5/8 | 3.00 | 1.493 | 0.438 | 0.500 | 1.343 | 0.120 | 0.375 | 0.495 | 3.750 | 4.500 | 1.375 | 3.000 | 4.750 |
| 2-1/2 | 3 | 1 | 3.00 | 1.493 | 0.438 | 0.500 | 1.343 | 0.120 | 0.375 | 0.495 | 3.750 | 4.500 | 1.750 | 3.000 | 5.125 |
| 3-1/4 | 1 | 1 | 3.75 | 1.868 | 0.563 | 0.750 | 1.500 | 0.188 | 0.500 | 0.688 | 4.750 | 5.750 | 1.875 | 3.250 | 5.625 |
| 3-1/4 | 3 | 1-3/8 | 3.75 | 1.868 | 0.563 | 0.750 | 1.500 | 0.188 | 0.500 | 0.688 | 4.750 | 5.750 | 2.125 | 3.250 | 5.875 |
| 4 | 1 | 1 | 4.50 | 2.243 | 0.563 | 0.750 | 1.500 | 0.188 | 0.500 | 0.688 | 5.500 | 6.500 | 1.875 | 3.250 | 5.625 |
| 4 | 3 | 1-3/8 | 4.50 | 2.243 | 0.563 | 0.750 | 1.500 | 0.188 | 0.500 | 0.688 | 5.500 | 6.500 | 2.125 | 3.250 | 5.875 |
| 5 | 1 | 1 | 5.50 | 2.743 | 0.813 | 1.000 | 1.500 | 0.250 | 0.688 | 0.938 | 6.875 | 8.250 | 2.063 | 3.125 | 5.875 |
| 5 | 3 | 1-3/8 | 5.50 | 2.743 | 0.813 | 1.000 | 1.500 | 0.250 | 0.688 | 0.938 | 6.875 | 8.250 | 2.313 | 3.125 | 6.125 |
