Side End Angle Mounting Style CB for 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore | Parker

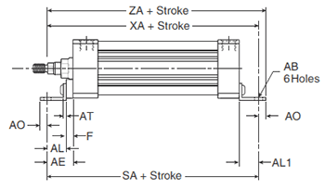

Style CB - Side End Angle
|
  |
Style CB
| Bore Size |
Rod # | Rod Dia. MM | AB |
AE |
AH | AL | AL1 |
AO | AT |
E | F | S | SA | XA | ZA |
| 1-1/2 | 1 | 5/8 | 0.438 | 1.375 | 1.188 | 1.000 | 1.000 | 0.375 | 0.125 | 2.000 | 0.375 | 1.250 | 6.000 | 5.625 | 6.000 |
| 1-1/2 | 2 | 1 | 0.438 | 1.375 | 1.188 | 1.000 | 1.000 | 0.375 | 0.125 | 2.000 | 0.375 | 1.250 | 6.000 | 6.000 | 6.375 |
| 2 | 1 | 5/8 | 0.438 | 1.375 | 1.438 | 1.000 | 1.000 | 0.375 | 0.125 | 2.500 | 0.375 | 1.750 | 6.000 | 5.625 | 6.000 |
| 2 | 3 | 1 | 0.438 | 1.375 | 1.438 | 1.000 | 1.000 | 0.375 | 0.125 | 2.500 | 0.375 | 1.750 | 6.000 | 6.000 | 6.375 |
| 2-1/2 | 1 | 5/8 | 0.438 | 1.375 | 1.625 | 1.000 | 1.000 | 0.375 | 0.125 | 3.000 | 0.375 | 2.250 | 6.125 | 5.750 | 6.125 |
| 2-1/2 | 3 | 1 | 0.438 | 1.375 | 1.625 | 1.000 | 1.000 | 0.375 | 0.125 | 3.000 | 0.375 | 2.250 | 6.125 | 6.125 | 6.500 |
| 3-1/4 | 1 | 1 | 0.563 | 1.875 | 1.938 | 1.250 | 1.250 | 0.500 | 0.125 | 3.750 | 0.625 | 2.750 | 7.375 | 6.875 | 7.375 |
| 3-1/4 | 3 | 1-3/8 | 0.563 | 1.875 | 1.938 | 1.250 | 1.250 | 0.500 | 0.125 | 3.750 | 0.625 | 2.750 | 7.375 | 7.125 | 7.625 |
| 4 | 1 | 1 | 0.563 | - | 2.250 | 1.875 | 1.250 | 0.500 | 0.125 | 4.500 | - | 3.500 | 7.375 | 6.875 | 7.375 |
| 4 | 3 | 1-3/8 | 0.563 | - | 2.250 | 1.875 | 1.250 | 0.500 | 0.125 | 4.500 | - | 3.500 | 7.375 | 7.125 | 7.625 |
| 5 | 1 | 1 | 0.688 | 2.000 | 2.750 | 1.375 | 1.375 | 0.625 | 0.188 | 5.500 | 0.625 | 4.250 | 7.875 | 7.250 | 7.875 |
| 5 | 3 | 1-3/8 | 0.688 | 2.000 | 2.750 | 1.375 | 1.375 | 0.625 | 0.188 | 5.500 | 0.625 | 4.250 | 7.875 | 7.500 | 8.125 |
