Trunnion Mounting Styles D, DB & DD for 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore | Parker

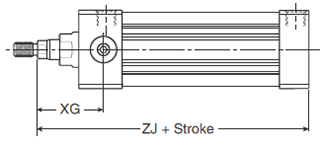

Style D - Head Trunnion
|
  |

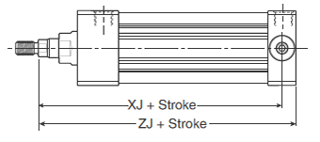

Style DB - Cap Trunnion
|
|

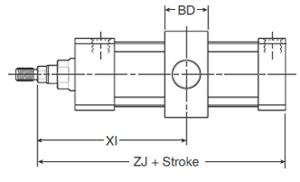

Style DD - Intermediate Trunnion
|
|
Styles D, DB & DD
| Bore Size |
Rod # | Rod Dia. MM | E |
BD | TD +.000 -.001 |
TL | TM | UM | UT | UV | XG | XI | XJ | ZJ |
| 1-1/2 | 1 | 5/8 | 2.000 | 1.250 | 1.000 | 1.000 | 2.500 | 4.500 | 4.000 | 2.500 | 1.750 | 3.036 | 4.125 | 4.625 |
| 1-1/2 | 2* | 1 | 2.000 | 1.250 | 1.000 | 1.000 | 2.500 | 4.500 | 4.000 | 2.500 | - | 3.437 | 4.250 | 5.000 |
| 2 | 1 | 5/8 | 2.500 | 1.500 | 1.000 | 1.000 | 3.000 | 5.000 | 4.500 | 3.000 | 1.750 | 3.125 | 4.125 | 4.625 |
| 2 | 3 | 1 | 2.500 | 1.500 | 1.000 | 1.000 | 3.000 | 5.000 | 4.500 | 3.000 | 2.125 | 3.500 | 4.500 | 5.000 |
| 2-1/2 | 1 | 5/8 | 3.000 | 1.500 | 1.000 | 1.000 | 3.500 | 5.500 | 5.000 | 3.500 | 1.750 | 3.094 | 4.250 | 4.750 |
| 2-1/2 | 3 | 1 | 3.000 | 1.500 | 1.000 | 1.000 | 3.500 | 5.500 | 5.000 | 3.500 | 2.125 | 3.469 | 4.625 | 5.125 |
| 3-1/4 | 1 | 1 | 3.750 | 2.000 | 1.000 | 1.000 | 4.500 | 6.500 | 5.750 | 4.250 | 2.250 | 3.969 | 5.000 | 5.625 |
| 3-1/4 | 3 | 1-3/8 | 3.750 | 2.000 | 1.000 | 1.000 | 4.500 | 6.500 | 5.750 | 4.250 | 2.500 | 4.219 | 5.250 | 5.875 |
| 4 | 1 | 1 | 4.500 | 2.000 | 1.000 | 1.000 | 5.250 | 7.250 | 6.500 | 5.000 | 2.250 | 3.969 | 5.000 | 5.625 |
| 4 | 3 | 1-3/8 | 4.500 | 2.000 | 1.000 | 1.000 | 5.250 | 7.250 | 6.500 | 5.000 | 2.500 | 4.219 | 5.250 | 5.875 |
| 5 | 1 | 1 | 5.500 | 2.000 | 1.000 | 1.000 | 6.250 | 8.250 | 7.500 | 6.000 | 2.250 | 3.969 | 5.250 | 5.875 |
| 5 | 3 | 1-3/8 | 5.500 | 2.000 | 1.000 | 1.000 | 6.250 | 8.250 | 7.500 | 6.000 | 2.250 | 4.219 | 5.500 | 6.125 |
*Head trunnion style D not available for 1-1/2" bore with 1" rod.
