Side End Lug Mounting Style G for 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore | Parker

Style G - Side End Lug

4MA Small Bore G Mount Style

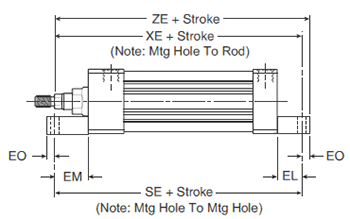

4MA Small Bore G Mount Style Head4MA Small Bore G Mount Style Body

Style G

 Bore Size
Rod # Rod Dia. MM E
EB
EL EM EO
ET GH
R SE XE ZE
1-1/2 1 5/8 2.000 0.281 0.750 1.125 0.250 0.563 0.993 1.430 5.500 5.375 5.625
 1-1/2 2 1 - - - - - - - - - - -
 2 1 5/8 2.500 0.344 0.938 1.313 0.313 0.688 1.243 1.840 5.875 5.563 5.875
 2 3 1 2.500 0.344 0.938 1.313 0.313 0.688 1.243 1.840 5.875 5.938 6.250
 2-1/2 1 5/8 3.000 0.344 1.063 1.438 0.313 0.813 1.493 2.190 6.250 5.813 6.125
 2-1/2 3 1 3.000 0.344 1.063 1.438 0.313 0.813 1.493 2.190 6.250 6.188 6.500
 3-1/4 1 1 3.750 0.406 0.875 1.500 0.375 1.000 1.868 2.760 6.625 6.500 6.875
 3-1/4 3 1-3/8 3.750 0.406 0.875 1.500 0.375 1.000 1.868 2.760 6.625 6.750 7.125
 4 1 1 4.500 0.406 1.000 1.625 0.375 1.188 2.243 3.320 6.875 6.625 7.000
4 3 1-3/8 4.500 0.406 1.000 1.625 0.375 1.188 2.243 3.320 6.875 6.875 7.250
