Rectangular Flange Mounts, Styles J & H for Parker 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore
Style J - Head Rectangular Flange
|
  |

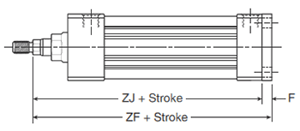

Style H - Cap Rectangular Flange
|
|
Styles J & H
| Bore Size |
Rod # | Rod Dia. MM | A |
E |
F |
FB | LA | R1 |
TF | UF |
W | LB | ZF | ZJ |
| 1-1/2 | 1 | 5/8 | 0.750 | 2.00 | .375 | .313 | 1.375 | 1.430 | 2.750 | 3.375 | .625 | 4.000 | 5.000 | 4.625 |
| 1-1/2 | 2 | 1 | 1.125 | 2.00 | .375 | .313 | 2.125 | 1.430 | 2.750 | 3.375 | 1.000 | 4.000 | 5.375 | 5.000 |
| 2 | 1 | 5/8 | 0.750 | 2.50 | .375 | .375 | 1.375 | 1.840 | 3.375 | 4.125 | 0.625 | 4.000 | 5.000 | 4.625 |
| 2 | 3 | 1 | 1.125 | 2.50 | .375 | .375 | 2.125 | 1.840 | 3.375 | 4.125 | 1.000 | 4.000 | 5.375 | 5.000 |
| 2-1/2 | 1 | 5/8 | 0.750 | 3.00 | .375 | .375 | 1.375 | 2.190 | 3.875 | 4.625 | 0.625 | 4.000 | 5.125 | 4.750 |
| 2-1/2 | 3 | 1 | 1.125 | 3.00 | .375 | .375 | 2.125 | 2.190 | 3.875 | 4.625 | 1.000 | 4.125 | 5.500 | 5.125 |
| 3-1/4 | 1 | 1 | 1.125 | 3.75 | .625 | .438 | 1.875 | 2.760 | 4.688 | 5.500 | 0.750 | 4.125 | 6.250 | 5.625 |
| 3-1/4 | 3 | 1-3/8 | 1.625 | 3.75 | .625 | .438 | 2.625 | 2.760 | 4.688 | 5.500 | 1.000 | 4.875 | 6.500 | 5.875 |
| 4 | 1 | 1 | 1.125 | 4.50 | .625 | .438 | 1.875 | 3.320 | 5.438 | 6.250 | 0.750 | 4.875 | 6.250 | 5.625 |
| 4 | 3 | 1-3/8 | 1.625 | 4.50 | .625 | .438 | 2.625 | 3.320 | 5.438 | 6.250 | 1.000 | 4.875 | 6.500 | 5.875 |
| 5 | 1 | 1 | 1.125 | 5.50 | .625 | .563 | 1.875 | 4.100 | 6.625 | 7.625 | 0.750 | 5.125 | 6.500 | 5.875 |
| 5 | 3 | 1-3/8 | 1.625 | 5.50 | .625 | .563 | 2.625 | 4.100 | 6.625 | 7.625 | 1.000 | 5.125 | 6.750 | 6.125 |
