Rod End Thread Styles for 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore Sizes | Parker

Thread Style 4

(NFPA Style SM)

Small Male

 NFPA Thread Style SM



Thread Style 8

(NFPA Style IM)

Intermediate Male



NFPA Thread Style IM

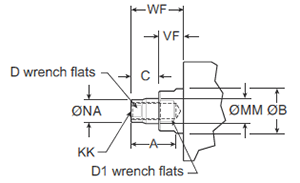

Thread Style 9

(NFPA Style SF)

Short Female



NFPA Thread Style SF



Thread Style 55

For Use with Split Coupler



Thread Style 55 for Split Coupler

Special threads, rod extensions, rod eyes, blanks, etc. are also available. To order, specify "Style 3" and give desired dimensions for KK or CC, A and W or WF.

Rod End Dimensions

 Bore Size
Rod # Rod Dia. MM  Style 8 CC
Style 4 & 9 KK
Style 6
 A  AD AE
 AF AM
B +.000 -.002
C D D1 LAF NA VF WF WG
1-1/2 1 5/8  1/2 -20  7/16-20  5/8 - 18 0.750 0.625 0.250 0.375 0.570 1.124 0.385 1/2 1 1.750 0.563 0.615 1.000 1.750
 1-1/2  2 1  7/8 - 14  3/4 - 16  1 - 14  1.125 0.938 0.375 0.688 0.950 1.499 0.510 7/8 1-3/8 2.500 0.938 0.865 1.375 2.375
 2 1 5/8  1/2 - 20  7/16-20  5/8 - 18 0.750 0.625 0.250 0.375 0.570 1.124 0.385 1/2 1 1.750 0.563 0.615 1.000 1.750
 2 3 1  7/8 - 14 3/4 - 16  1 - 14  1.125 0.938 0.375 0.688 0.950 1.499 0.510 7/8 1-3/8 2.500 0.938 0.865 1.375 2.375
 2-1/2 1 5/8  1/2 - 20  7/16-20  5/8 - 18  0.750 0.625 0.250 0.375 0.570 1.124 0.385 1/2 1 1.750 0.563 0.615 1.000 1.750
 2-1/2 3 1  7/8 - 14  3/4 - 16  1 - 14  1.125 0.938 0.375 0.688 0.950 1.499 0.510 7/8 1-3/8 2.500 0.938 0.865 1.375 2.375
 3-1/4 1 1  7/8 - 14  3/4 - 16  1 - 14  1.125 0.938 0.375 0.688 0.950 1.499 0.510 7/8 1-3/8 2.500 0.938 0.865 1.375 2.375
 3-1/4 3 1-3/8  1-1/4-12  1 - 14  1-3/8-14  1.625 1.063 0.375 0.875 1.320 1.999 0.635 1-1/8 1-7/8 3.250 1.313 0.990 1.625 2.750
 4 1 1  7/8 - 14  3/4-16  1 - 14  1.125 0.938 0.375 0.688 0.950 1.499 0.510 7/8 1-3/8 2.500 0.938 0.865 1.375 2.375
4 3 1-3/8 1-1/4-12 1 - 14 1-3/8-14 1.625 1.063 0.375 0.875 1.320 1.999 0.635 1-1/8 1-7/8 3.250 1.313 0.990 1.625 2.750
5 1 1 7/8 - 14 3/4 - 16 1 - 14 1.125 0.938 0.375 0.688 0.950 1.499 0.510 7/8 1-3.8 2.500 0.938 0.865 1.375 2.375
5 3 1-3/8 1-1/4-12 1 - 14 1-3/8-14 1.625 0.938 0.375 0.875 1.320 1.999 0.635 1-1/8 1-7/8 3.250 1.313 0.990 1.625 2.750
