Extended Mounting Styles TB, TC & TD for 4MA/4ML Series Tie Rod Cylinders, 1-1/2" to 5" Bore | Parker

Style TB - Tie Rods Ext. Head End

4MA Small Bore TB Mounting Style

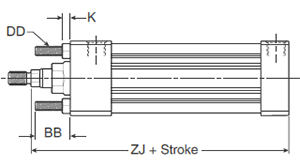

4MA Small Bore TB Head Dimensions4MA Small Bore TB Body Dimensions

Style TC - Tie Rods Ext. Cap End

4MA Small Bore TC Mounting Style

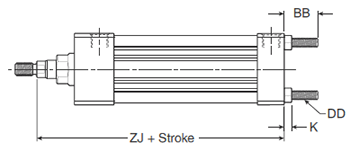

4MA Small Bore TC Head Dimensions 4MA Small Bore TC Body Dimensions

Style TD - Tie Rods Ext. Both Ends

4MA Small Bore TD Mounting Style

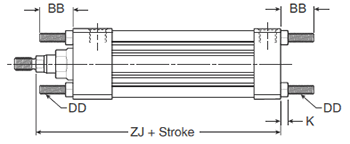

4MA Small Bore TD Head Dimensions4MA Small Bore TD Body Dimensions

Styles TB, TC & TD

 Bore Size
Rod # Rod Dia. MM  BB
DD
E
K R ZJ
1-1/2 1 5/8 1.000 1/4 - 28 2.000 0.250 1.430 4.625
 1-1/2 2 1 1.000 1/4 - 28 2.000 0.250 1.430 5.000
 2 1 5/8 1.125 5/16 - 24 2.500 0.313 1.840 4.625
 2 3 1 1.125 5/16 - 24 2.500 0.313 1.840 5.000
 2-1/2 1 5/8 1.125 5/16 - 24 3.000 0.313 2.190 4.750
 2-1/2 3 1 1.125 5/16 - 24 3.000 0.313 2.190 5.125
 3-1/4 1 1 1.375 5/16 - 24 3.750 0.375 2.760 5.625
 3-1/4 3 1-3/8 1.375 3/8 - 24 3.750 0.375 2.760 5.875
 4 1 1 1.375 3/8 - 24 4.500 0.375 3.320 5.625
4 3 1-3/8 1.375 3/8 - 24 4.500 0.375 3.320 5.875
5 1 1 1.813 1/2 - 20 5.500 0.438 4.100 5.875
5 3 1-3/8 1.813 1/2 - 20 5.500 0.438 4.100 6.125
