Cap Detachable Eye Mounting Style BE for 4MAJ Series Tie Rod Cylinders, Rod Lock Option, 6" Bore Size | Parker

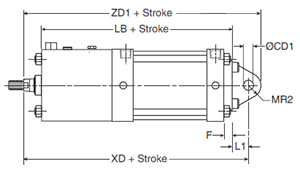

Style BE (NFPA MP4) - Cap Detachable Eye
|
  |
Style BE
| Bore Size |
Rod # | Rod Dia. MM | CB | +.0002 +.004 CD1 | E |
F | L1 | MR2 | Add Stroke LB | XD | ZD1 |
| 6 | 1 | 1-3/8 | 1.500 | 1.000 | 6.500 | 0.750 | 1.500 | 1.125 | 12.125 | 15.250 | 16.375 |
| 6 | 3 | 1-3/4 | 1.500 | 1.000 | 6.500 | 0.750 | 1.500 | 1.125 | 12.625 | 16.000 | 17.125 |
