Side Lug Mounting Style C for 4MAJ Series Tie Rod Cylinders, Rod Lock Option, 6" and 8" Bore Sizes | Parker
Style C (NFPA MS2) - Side Lug
|

|

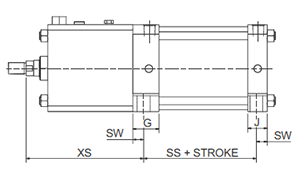

Style C Dimensions
| Bore Size |
Rod # | Rod Dia. MM | E |
G | J | +/-.003 LH |
SB | ST |
SW |
TS |
US |
XS | Add Stroke SS |
| 6 | 1 | 1-3/8 | 6.500 | 1.910 | 1.410 | 3.243 | 0.813 | 1.000 | 0.688 | 7.875 | 9.250 | 8.688 | 3.625 |
| 6 | 3 | 1-3/4 | 6.500 | 1.910 | 1.410 | 3.243 | 0.813 | 1.000 | 0.688 | 7.875 | 9.250 | 9.438 | 3.625 |
| 8 | 1 | 1-3/8 | 8.500 | 1.810 | 1.440 | 4.243 | 0.813 | 1.000 | 0.688 | 9.875 | 11.250 | 8.938 | 3.750 |
| 8 | 3 | 1-3/4 | 8.500 | 1.810 | 1.440 | 4.243 | 0.813 | 1.000 | 0.688 | 9.875 | 11.250 | 9.688 | 3.750 |
