Side End Angle Mounting Style CB for 4MAJ Series Tie Rod Cylinders, Rod Lock Option, 6" and 8" Bore Sizes | Parker

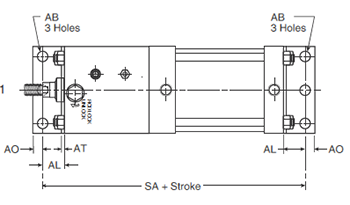

Style CB (NFPA MS1) - Side End Angle
|
|
CB Dimensions
| Bore Size |
Rod # | Rod Dia. MM | AB |
AH | AL |
AO |
AT |
E |
S |
Add Stroke SA |
| 6 | 1 | 1-3/8 | 0.813 | 3.250 | 1.375 | 0.625 | 0.188 | 6.500 | 5.250 | 14.125 |
| 6 | 3 | 1-3/4 | 0.813 | 3.250 | 1.375 | 0.625 | 0.188 | 6.500 | 5.250 | 14.625 |
| 8 | 1 | 1-3/8 | 0.813 | 4.250 | 1.813 | 0.688 | 0.250 | 8.500 | 7.125 | 15.375 |
| 8 | 3 | 1-3/4 | 0.813 | 4.250 | 1.813 | 0.688 | 0.250 | 8.500 | 7.125 | 15.875 |
