Trunnion Mount Styles D & DB for 4MAJ Series Tie Rod Cylinders, Rod Lock Option, 6" and 8" Bore Sizes | Parker

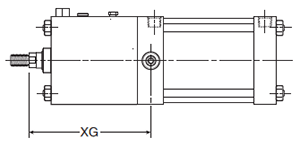

Style D (NFPA MT1) - Head Trunnion
|
  |

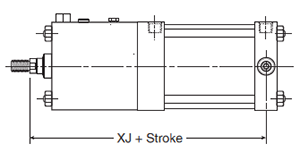

Style DB (NFPA MT2) - Cap Trunnion
|
|
Styles D & DB
| Bore Size |
Rod # | Rod Dia. MM | E |
+.000 -.001 TD | TL | UT | XG | XJ |
| 6 | 1 | 1-3/8 | 6.500 | 1.375 | 1.375 | 9.250 | 9.000 | 12.250 |
| 6 | 3 | 1-3/4 | 6.500 | 1.375 | 1.375 | 9.250 | 9.750 | 13.000 |
| 8 | 1 | 1-3/8 | 8.500 | 1.375 | 1.375 | 11.250 | 9.250 | 12.625 |
| 8 | 3 | 1-3/4 | 8.500 | 1.375 | 1.375 | 11.250 | 10.000 | 13.375 |
