Trunnion Mount Style DD for 4MAJ Series Tie Rod Cylinders, Rod Lock Option, 6" and 8" Bore Sizes | Parker

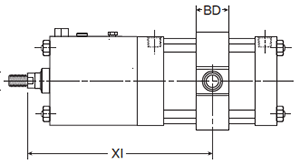

Style DD (NFPA MT4) - Intermediate Trunnion
|
  |
Style DD
| Bore Size |
Rod # | Rod Dia. MM | E |
BD | +.000 -.001 TD | TL | TM | UM | UV | Min. XI | Min. stroke |
| 6 | 1 | 1-3/8 | 6.500 | 2.500 | 1.375 | 1.375 | 7.625 | 10.375 | 7.000 | 20.16 | 6.125 |
| 6 | 3 | 1-3/4 | 6.500 | 2.500 | 1.375 | 1.375 | 7.625 | 10.375 | 7.000 | 20.19 | 6.125 |
| 8 | 1 | 1-3/8 | 8.500 | 2.500 | 1.375 | 1.375 | 9.750 | 12.500 | 9.500 | 26.31 | 6.500 |
| 8 | 3 | 1-3/4 | 8.500 | 2.500 | 1.375 | 1.375 | 9.750 | 12.500 | 9.500 | 27.06 | 6.500 |
Note: Style DD requires minimum stroke per table.
