Side Tap Mounting Style F for 4MAJ Series, Rod Lock Option, Tie Rod Cylinders, 6" and 8" Bore Sizes | Parker
Style F (NFPA MS4) - Side Tap
|
|

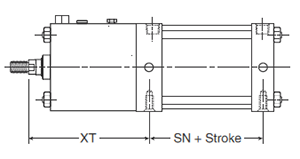

Style F Dimensions
| Bore Size |
Rod # | Rod Dia. MM | E |
+/-.003 TH |
ND | NT |
TN |
XT | Add Stroke SN |
| 6 | 1 | 1-3/8 | 6.500 | 3.243 | 1.125 | 3/4-10 | 3.250 | 9.188 | 3.125 |
| 6 | 3 | 1-3/4 | 6.500 | 3.243 | 1.125 | 3/4-10 | 3.250 | 9.938 | 3.125 |
| 8 | 1 | 1-3/8 | 8.500 | 4.243 | 1.125 | 3/4-10 | 4.500 | 9.438 | 3.250 |
| 8 | 3 | 1-3/4 | 8.500 | 4.243 | 1.125 | 3/4-10 | 4.500 | 10.188 | 3.250 |
