Rectangular Flange Mounting Styles J & H for 4MAJ Series Tie Rod Cylinders, 6" Bore Sizes | Parker

Style J (NFPA MF1) - Head Rectangular Flange

 4MAJ Large Bore J Mounting Style



Note: Style J has a W dimension instead of WF and an LA dimension instead of LAF because of the flange installation. Please use dimensions W and LA regarding rod ends only for Style J.



For reference, WF = W + F and LA= W + A.

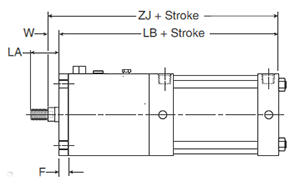

4MAJ Large Bore J Mounting Style Head Dimensions4MAJ Large Bore J Mounting Style Body Dimensions

Style H (NFPA MF2) - Cap Rectangular Flange

4MAJ Large H Mounting Style

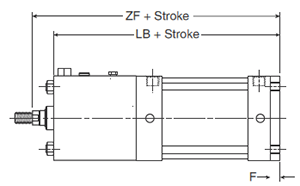

 4MAJ Large Bore H Mounting Style Head Dimensions4MAJ Large Bore H Mounting Style Body Dimensions

Styles J & H

 Bore Size
Rod # Rod Dia. MM  A
E
F
FB  LA R1
TF UF
W LB ZF ZJ
6 1 1-3/8 1.625 6.50 .750 .563 2.500 4.880 7.625 8.625 0.875 12.125 13.750 13.000
6 3 1-3/4 2.000 6.50 .750 .563 3.125 4.880 7.625 8.625 1.125 12.625 14.500 13.750
