Rod End Thread Styles | NFPA 4MAJ Series, Rod Lock Option - 6" and 8" Bore Sizes | Parker

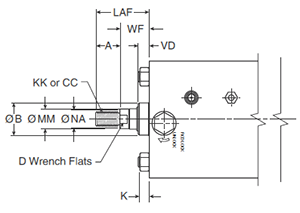

Thread Style 4

(NFPA Style SM)

Small Male

 4MAJ Large Bore Rod End Thread Style SM

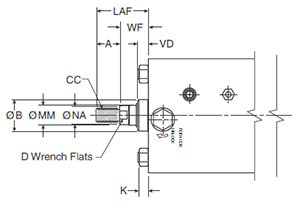

Thread Style 8

(NFPA Style IM)

Intermediate Male



4MAJ Large Bore Rod End Thread Style IM

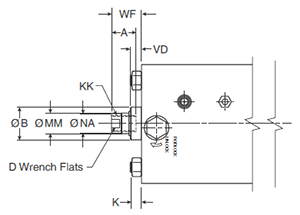

Thread Style 9

(NFPA Style SF)

Short Female



4MAJ Large Bore Rod End Thread Style SF

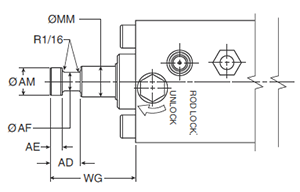

Thread Style 55

For Use with Split Coupler



4MAJ Large Bore Rod End Thread Style 55



Special threads, rod extensions, rod eyes, blanks, etc. are also available. To order, specify "Style 3" and give desired dimensions for KK or CC, A and W or WF.

Rod End Dimensions

 Bore Size
Rod # Rod Dia. MM  Style 8 CC
Style 4 & 9 KK
Style 6
 A  AD AE
 AF AM
B +.000 -.002
C D K LAF NA VD VF WF WG
6 1 1-3/8 1-1/4-12  1 - 14  1-3/8-14 1.625 1.063 0.375 0.875 1.320 1.999 0.635 1-1/8 0.438 3.250 1.313 0.755 0.990 1.625 2.750
6 3 1-3/4 1-1/2-12 1-1/4-12 1-3/4-12 2.000 1.313 0.500 1.125 1.700 2.374 0.760 1-1/2 0.438 3.875 1.688 0.875 1.115 1.875 3.125
8 1 1-3/8 1-1/4-12 1 - 14 1-3/8-14 1.625 1.063 0.375 0.875 1.320 1.999 0.635 1-1/8 0.563 3.250 1.313 0.755 0.990 1.625 2.750
8 3 1-3/4 1-1/2-12 1-1/4-12 1-3/4-12 2.000 1.313 0.500 1.125 1.700 2.374 0.760 1-1/2 0.563 3.875 1.688 0.875 1.115 1.875 3.125
