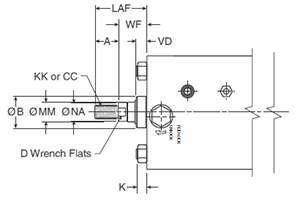

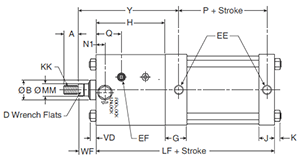

Single Rod Mounting Style T | NFPA 4MAJ Series Rod Lock Option - 6" to 8" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators
|
|
|
Style T
Bore Size |
Rod # | Rod Dia. MM | Style 8 CC |
Style 4 & 9 KK |
Style 6 |
A | AA | +.000 -.002 B |
D | E | EE (NPTF) | EF (NPTF) | G | H | J |
6 | 1 | 1 | 1/4 - 12 | 1 - 14 | 1-3/8-14 | 1.625 | 6.900 | 1.999 | 1-1/8 | 6.50 | 3/4 | 1/4 | 1.910 | 6.375 | 1.410 |
6 | 3 | 1-3/8 | 1-1/2 - 12 | 1-1/4-12 | 1-3/4-12 | 2.000 | 6.900 | 2.374 | 1-1/2 | 6.50 | 3/4 | 1/4 | 1.910 | 6.875 | 1.410 |
8 | 1 | 1 | 1-1/4 - 12 | 1 - 4 | 1-3/8-14 | 1.625 | 9.100 | 1.999 | 1-1/8 | 8.50 | 3/4 | 1/4 | 1.910 | 6.625 | 1.440 |
8 | 3 | 1-3/8 | 1-1/2 - 12 | 1-1/4-12 | 1-3/4-12 | 2.000 | 9.100 | 2.374 | 1-1/2 | 8.50 | 3/4 | 1/4 | 1.910 | 7.125 | 1.440 |
Bore Size |
Rod # | Rod Dia. MM | K |
LAF |
N1 | N2 | Hex N3 | NA | NR | Q | R | VD | WF | Y | LF | P |
6 | 1 | 1 | 0.438 | 3.250 | 1.165 | 0.177 | 1-5/16 | 1.313 | 0.750 | 2.705 | 4.880 | 0.755 | 1.625 | 9.188 | 11.375 | 3.125 |
6 | 3 | 1-3/8 | 0.438 | 3.875 | 1.495 | 0.177 | 1-5/16 | 1.688 | 0.740 | 3.055 | 4.880 | 0.875 | 1.875 | 9.938 | 11.875 | 3.125 |
8 | 1 | 1 | 0.563 | 3.250 | 1.305 | 0.177 | 1-5/16 | 0.313 | 0.740 | 2.885 | 6.440 | 0.755 | 1.625 | 9.375 | 11.750 | 3.250 |
8 | 3 | 1-3/8 | 0.563 | 3.875 | 1.570 | 0.177 | 1-5/16 | 1.688 | 0.740 | 3.145 | 6.440 | 0.875 | 1.875 | 10.125 | 12.250 | 3.250 |
