Tie Rods Mount Styles TB, TC & TD for 4MAJ Series, 6" and 8" Bore Sizes Tie Rod Cylinders | Parker
Style TB (NFPA MX3) - Tie Rods Ext. Head End
|
  |

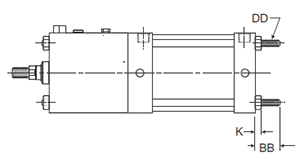

Style TC (NFPA MX2) - Tie Rods Ext. Cap End
|
|

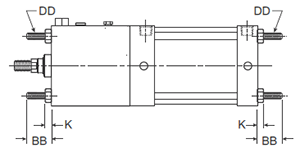

Style TD (NFPA MX1) - Tie Rods Ext. Both Ends
|
|
Styles TB, TC & TD
| Bore Size |
Rod # | Rod Dia. MM | AA |
BB | DD |
E |
K | R |
| 6 | 1 | 1-3/8 | 6.900 | 1.813 | 1/2-20 | 6.500 | 0.438 | 4.880 |
| 6 | 3 | 1-3/4 | 6.900 | 1.813 | 1/2-20 | 6.500 | 0.438 | 4.880 |
| 8 | 1 | 1-3/8 | 9.100 | 2.313 | 5/8-18 | 8.500 | 0.563 | 6.440 |
| 8 | 3 | 1-3/4 | 9.100 | 2.313 | 5/8-18 | 8.500 | 0.563 | 6.440 |
