Cap Mounting Styles BE | NFPA 4MAJ Series, Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

Style BE - Cap Detachable Eye Mount

4MAJ Small Bore BE Mounting Style

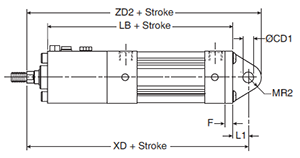

4MAJ Small Bore BE Mounting Style Head Dimensions4MAJ Small Bore BE Mounting Style Body Dimensions

Style BE

 Bore Size
Rod # Rod Dia. MM  CB
+.002 +.004 CD1
E F
L1 MR2 LB XD ZD2
1-1/2 1 5/8 0.750 .500 2.00 .375 0.750 .625 6.625 8.375 9.000
 2 1 5/8 0.750 .500 2.50 .375  0.750 .625 6.875 8.625 9.250
 2 3 1 0.750 .500 3.00 .375  0.750 .625 7.875 10.000 10.625
 2-1/2 1 5/8 0.750 .500 3.00 .375  0.750 .688 7.000 8.750 9.438
 2-1/2 3 1 0.750 .500 3.00 .375  0.750 .688 8.125 10.250 10.938
 3-1/4 1 1 1.250 .750 3.75 .625  1.250 .875 9.375 12.000 12.875
 3-1/4 3 1-3/8 1.250 .750 3.75 .625  1.250 .875 9.750 12.625 13.500
 4 1 1 1.250 .750 4.50 .625  1.250 .875 9.750 12.375 13.250
4 3 1-3/8 1.250 .750 4.50 .625  1.250 .875 10.000 12.875 13.750
5* 1 1 1.250 .750 5.50 .625  1.250 .875 10.500 13.125 14.000
5* 3 1-3/8 1.250 .750 5.50 .625  1.250 .875 10.875 13.750 14.625

Mounting Styles - Dimensions (Small Bore, Up to 5"):
