Side Lug Mounting Style C | NFPA 4MAJ Series Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

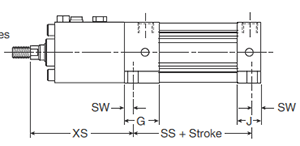

Style C - Side Lug
|
  |
Style C
| Bore Size |
Rod # | Rod Dia. MM | E |
G |
J | +/-.003 LH |
SB |
ST | SW |
TS | US | XS | SS |
| 1-1/2 | 1 | 5/8 | 2.00 | 1.438 | 0.938 | 0.500 | 1.000 | 0.120 | 0.375 | 2.750 | 3.500 | 1.375 | 2.875 |
| 2 | 1 | 5/8 | 2.50 | 1.375 | 0.937 | 0.500 | 1.250 | 0.120 | 0.375 | 3.250 | 4.000 | 1.375 | 2.875 |
| 2 | 3 | 1 | 2.50 | 1.375 | 0.937 | 0.500 | 1.250 | 0.120 | 0.375 | 3.250 | 4.000 | 1.750 | 2.875 |
| 2-1/2 | 1 | 5/8 | 3.00 | 1.344 | 0.938 | 0.500 | 1.343 | 0.120 | 0.375 | 3.750 | 4.500 | 1.375 | 3.000 |
| 2-1/2 | 3 | 1 | 3.00 | 1.344 | 1.125 | 0.500 | 1.343 | 0.120 | 0.375 | 3.750 | 4.500 | 1.750 | 3.000 |
| 3-1/4 | 1 | 1 | 3.75 | 1.594 | 0.563 | 0.750 | 1.500 | 0.188 | 0.500 | 4.750 | 5.750 | 1.875 | 3.250 |
| 3-1/4 | 3 | 1-3/8 | 3.75 | 1.594 | 0.563 | 0.750 | 1.500 | 0.188 | 0.500 | 4.750 | 5.750 | 2.125 | 3.250 |
| 4 | 1 | 1 | 4.50 | 1.594 | 0.563 | 0.750 | 1.500 | 0.188 | 0.500 | 5.500 | 6.500 | 1.875 | 3.250 |
| 4 | 3 | 1-3/8 | 4.50 | 1.594 | 0.563 | 0.750 | 1.500 | 0.188 | 0.500 | 5.500 | 6.500 | 2.125 | 3.250 |
| 5 | 1 | 1 | 5.50 | 1.594 | 0.813 | 1.000 | 1.500 | 0.250 | 0.688 | 6.875 | 8.250 | 2.063 | 3.125 |
| 5 | 3 | 1-3/8 | 5.50 | 1.594 | 0.813 | 1.000 | 1.500 | 0.250 | 0.688 | 6.875 | 8.250 | 2.313 | 3.125 |
Mounting Styles - Dimensions (Small Bore, Up to 5"):
