Side End Angle Mounting Style CB | NFPA 4MAJ Series, Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

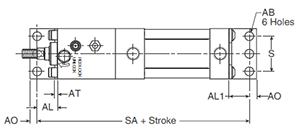

Style CB - Side End Angle
|
  |
Style CB
| Bore Size |
Rod # | Rod Dia. MM | AB |
AH | AL | AL1 |
AO | AT |
E | S | SA |
| 1-1/2 | 1 | 5/8 | 0.438 | 1.188 | 1.000 | 1.000 | 0.375 | 0.125 | 2.000 | 1.250 | 8.250 |
| 2 | 1 | 5/8 | 0.438 | 1.438 | 1.000 | 1.000 | 0.375 | 0.125 | 2.500 | 1.750 | 8.500 |
| 2 | 3 | 1 | 0.438 | 1.438 | 1.000 | 1.000 | 0.375 | 0.125 | 2.500 | 1.750 | 9.500 |
| 2-1/2 | 1 | 5/8 | 0.438 | 1.625 | 1.000 | 1.000 | 0.375 | 0.125 | 3.000 | 2.250 | 8.625 |
| 2-1/2 | 3 | 1 | 0.438 | 1.625 | 1.000 | 1.000 | 0.375 | 0.125 | 3.000 | 2.250 | 9.750 |
| 3-1/4 | 1 | 1 | 0.563 | 1.938 | 1.250 | 1.250 | 0.500 | 0.125 | 3.750 | 2.750 | 11.250 |
| 3-1/4 | 3 | 1-3/8 | 0.563 | 1.938 | 1.250 | 1.250 | 0.500 | 0.125 | 3.750 | 2.750 | 11.625 |
| 4 | 1 | 1 | 0.563 | 2.250 | 1.875 | 1.250 | 0.500 | 0.125 | 4.500 | 3.500 | 12.250 |
| 4 | 3 | 1-3/8 | 0.563 | 2.250 | 1.875 | 1.250 | 0.500 | 0.125 | 4.500 | 3.500 | 12.500 |
| 5 | 1 | 1 | 0.688 | 2.750 | 1.375 | 1.375 | 0.625 | 0.188 | 5.500 | 4.250 | 12.625 |
| 5 | 3 | 1-3/8 | 0.688 | 2.750 | 1.375 | 1.375 | 0.625 | 0.188 | 5.500 | 4.250 | 13.000 |
