Trunnion Mounting Style D & DB | NFPA 4MAJ Series, Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

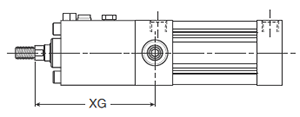

Style D - Head Trunnion
|
|

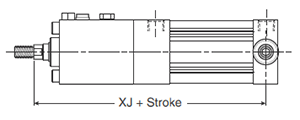

Style DB - Cap Trunnion
|
  |
Styles D & DB
| Bore Size |
Rod # | Rod Dia. MM | E |
TD +.000 -.001 |
TL | UT | XG | XJ |
| 1-1/2 | 1 | 5/8 | 2.000 | 1.000 | 1.000 | 4.000 | 4.375 | 6.750 |
| 2 | 1 | 5/8 | 2.500 | 1.000 | 1.000 | 4.500 | 4.625 | 7.000 |
| 2 | 3 | 1 | 2.500 | 1.000 | 1.000 | 4.500 | 6.000 | 8.375 |
| 2-1/2 | 1 | 5/8 | 3.000 | 1.000 | 1.000 | 5.000 | 4.625 | 7.125 |
| 2-1/2 | 3 | 1 | 3.000 | 1.000 | 1.000 | 5.000 | 6.125 | 8.625 |
| 3-1/4 | 1 | 1 | 3.750 | 1.000 | 1.000 | 5.750 | 6.750 | 9.500 |
| 3-1/4 | 3 | 1-3/8 | 3.750 | 1.000 | 1.000 | 5.750 | 7.375 | 10.125 |
| 4 | 1 | 1 | 4.500 | 1.000 | 1.000 | 6.500 | 7.125 | 9.875 |
| 4 | 3 | 1-3/8 | 4.500 | 1.000 | 1.000 | 6.500 | 7.625 | 10.375 |
| 5 | 1 | 1 | 5.500 | 1.000 | 1.000 | 7.500 | 7.625 | 10.625 |
| 5 | 3 | 1-3/8 | 5.500 | 1.000 | 1.000 | 7.500 | 8.250 | 11.250 |
Mounting Styles - Dimensions (Small Bore, Up to 5"):
