Trunnion Mounting Style DD | NFPA 4MAJ Series, Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

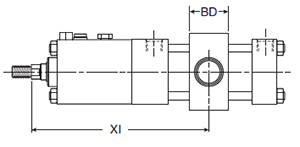

Style DD - Intermediate Trunnion
|
|
Style DD
| Bore Size |
Rod # | Rod Dia. MM | E |
BD | TD +.000 -.001 |
TL | TM | UM | UV | Min. XI | Min. stroke |
| 1-1/2 | 1 | 5/8 | 2.000 | 1.250 | 1.000 | 1.000 | 2.500 | 4.500 | 2.500 | 5.69 | 3.250 |
| 2 | 1 | 5/8 | 2.500 | 1.500 | 1.000 | 1.000 | 3.000 | 5.000 | 3.000 | 6.00 | 4.000 |
| 2 | 3 | 1 | 2.500 | 1.500 | 1.000 | 1.000 | 3.000 | 5.000 | 3.000 | 7.38 | 4.000 |
| 2-1/2 | 1 | 5/8 | 3.000 | 1.500 | 1.000 | 1.000 | 3.500 | 5.500 | 3.500 | 5.97 | 3.875 |
| 2-1/2 | 3 | 1 | 3.000 | 1.500 | 1.000 | 1.000 | 3.500 | 5.500 | 3.500 | 7.47 | 3.875 |
| 3-1/4 | 1 | 1 | 3.750 | 2.000 | 1.000 | 1.000 | 4.500 | 6.500 | 4.250 | 13.72 | 4.375 |
| 3-1/4 | 3 | 1-3/8 | 3.750 | 2.000 | 1.000 | 1.000 | 4.500 | 6.500 | 4.250 | 14.34 | 4.375 |
| 4 | 1 | 1 | 4.500 | 2.000 | 1.000 | 1.000 | 5.250 | 7.250 | 5.000 | 14.09 | 4.875 |
| 4 | 3 | 1-3/8 | 4.500 | 2.000 | 1.000 | 1.000 | 5.250 | 7.250 | 5.000 | 14.59 | 4.875 |
| 5 | 1 | 1 | 5.500 | 2.000 | 1.000 | 1.000 | 6.250 | 8.250 | 6.000 | 16.34 | 5.125 |
| 5 | 3 | 1-3/8 | 5.500 | 2.000 | 1.000 | 1.000 | 6.250 | 8.250 | 6.000 | 16.97 | 5.125 |
Note: Style DD requires minimum stroke per table.
