Side Tap Mounting Style F | NFPA 4MAJ Series Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

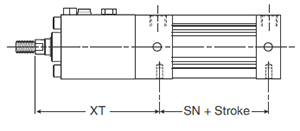

Style F - Side Tap
|
  |
Style F
| Bore Size |
Rod # | Rod Dia. MM | E |
ND |
NT | +/-.003 TH |
TN |
XT | SN |
| 1-1/2 | 1 | 5/8 | 2.00 | 0.375 | 1/4 - 20 | 0.933 | 0.625 | 4.563 | 2.250 |
| 2 | 1 | 5/8 | 2.50 | 0.438 | 5/16 - 18 | 1.243 | 0.875 | 4.813 | 2.250 |
| 2 | 3 | 1 | 2.50 | 0.375 | 5/16 - 18 | 1.243 | 0.875 | 6.188 | 2.250 |
| 2-1/2 | 1 | 5/8 | 3.00 | 0.625 | 3/8 - 16 | 1.493 | 1.250 | 4.813 | 2.375 |
| 2-1/2 | 3 | 1 | 3.00 | 0.625 | 3/8 - 16 | 1.493 | 1.250 | 6.313 | 2.375 |
| 3-1/4 | 1 | 1 | 3.75 | 1.594 | 1/2 - 13 | 1.868 | 1.500 | 6.938 | 2.625 |
| 3-1/4 | 3 | 1-3/8 | 3.75 | 0.750 | 1/2 - 13 | 1.868 | 1.500 | 7.563 | 2.625 |
| 4 | 1 | 1 | 4.50 | 0.750 | 1/2 - 13 | 2.243 | 2.063 | 7.313 | 2.625 |
| 4 | 3 | 1-3/8 | 4.50 | 0.750 | 1/2 - 13 | 2.243 | 2.063 | 7.813 | 2.625 |
| 5 | 1 | 1 | 5.50 | 0.938 | 5/8 -11 | 2.743 | 2.688 | 7.813 | 2.875 |
| 5 | 3 | 1-3/8 | 5.50 | 0.938 | 5/8 - 11 | 2.743 | 2.688 | 8.438 | 2.875 |
Mounting Styles - Dimensions (Small Bore, Up to 5"):
