Side End Lug Mounting Style G | NFPA 4MAJ Series, Rod Lock Option - 1-1/2" to 4" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

Style G - Side End Lug


4MAJ Small Bore G Mounting Style

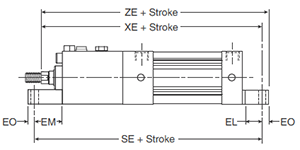

4MAJ Small Bore G Mounting Style Head Dimensions4MAJ Small Bore G Mounting Style Body Dimensions

Style G

 Bore Size
Rod # Rod Dia. MM E
EB
EL EM EO
ET +/-.003 GH
R SE XE ZE
1-1/2 1 5/8 2.000 0.281 0.750 1.125 0.250 0.563 0.993 1.430 8.125 8.000 8.250
 2 1 5/8 2.500 0.344 0.938 1.313 0.313 0.688 1.243 1.840 8.750 8.438 8.750
 2 3 1 2.500 0.344 0.938 1.313 0.313 0.688 1.243 1.840 9.750 9.813 10.125
 2-1/2 1 5/8 3.000 0.344 1.063 1.438 0.313 0.813 1.493 2.190 9.125 8.688 9.000
 2-1/2 3 1 3.000 0.344 1.063 1.438 0.313 0.813 1.493 2.190 10.250 10.188 10.500
 3-1/4 1 1 3.750 0.406 0.875 1.500 0.375 1.000 1.868 2.760 11.125 11.000 11.375
 3-1/4 3 1-3/8 3.750 0.406 0.875 1.500 0.375 1.000 1.868 2.760 11.500 11.625 12.000
 4 1 1 4.500 0.406 1.000 1.625 0.375 1.188 2.243 3.320 11.750 11.500 11.875
4 3 1-3/8 4.500 0.406 1.000 1.625 0.375 1.188 2.243 3.320 12.000 12.000 12.375

Mounting Styles - Dimensions (Small Bore, Up to 5"):
