Rod End Thread Styles | NFPA 4MAJ Series Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

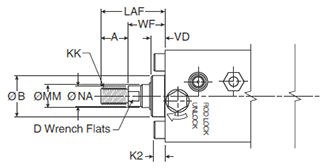

Thread Style 4(NFPA Style SM) Small Male
|

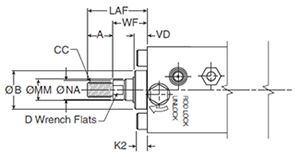

Thread Style 8(NFPA Style IM) Intermediate Male
|

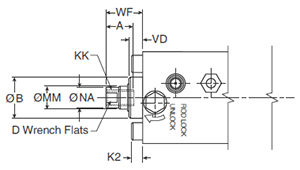

Thread Style 9(NFPA Style SF) Short Female
|

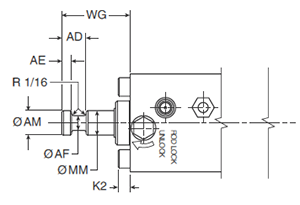

Thread Style 55For Use with Split Coupler
|
Special threads, rod extensions, rod eyes, blanks, etc. are also available. To order, specify "Style 3" and give desired dimensions for KK or CC, A and W or WF.
Rod End Dimensions
| Bore Size |
Rod # | Rod Dia. MM | Style 8 CC |
Style 4 & 9 KK |
Style 6 |
A | AD | AE |
AF | AM |
B +.000 -.002 |
D | K2 | LAF | NA | VF | WF | WG |
| 1-1/2 | 1 | 5/8 | 1/2 -20 | 7/16-20 | 5/8 - 18 | 0.750 | 0.625 | 0.250 | 0.375 | 0.570 | 1.124 | 1/2 | 0.250 | 1.750 | 0.563 | 0.375 | 1.000 | 1.750 |
| 2 | 1 | 5/8 | 1/2 - 20 | 7/16-20 | 5/8 - 18 | 0.750 | 0.625 | 0.250 | 0.375 | 0.570 | 1.124 | 1/2 | 0.313 | 1.750 | 0.563 | 0.375 | 1.000 | 1.750 |
| 2 | 3 | 1 | 7/8 - 14 | 3/4 - 16 | 1 - 14 | 1.125 | 0.938 | 0.375 | 0.688 | 0.950 | 1.499 | 7/8 | 0.313 | 2.500 | 0.938 | 0.500 | 1.375 | 2.375 |
| 2-1/2 | 1 | 5/8 | 1/2 - 20 | 7/16-20 | 5/8 - 18 | 0.750 | 0.625 | 0.250 | 0.375 | 0.570 | 1.124 | 1/2 | 0.313 | 1.750 | 0.563 | 0.500 | 1.000 | 1.750 |
| 2-1/2 | 3 | 1 | 7/8 - 14 | 3/4 - 16 | 1 - 14 | 1.125 | 0.938 | 0.375 | 0.688 | 0.950 | 1.499 | 7/8 | 0.313 | 2.500 | 0.938 | 0.500 | 1.375 | 2.375 |
| 3-1/4 | 1 | 1 | 7/8 - 14 | 3/4 - 16 | 1 - 14 | 1.125 | 0.938 | 0.375 | 0.688 | 0.950 | 1.499 | 7/8 | 0.375 | 2.500 | 0.938 | 0.500 | 1.375 | 2.375 |
| 3-1/4 | 3 | 1-3/8 | 1-1/4-12 | 1 - 14 | 1-3/8-14 | 1.625 | 1.063 | 0.375 | 0.875 | 1.320 | 1.999 | 1-1/8 | 0.375 | 3.250 | 1.313 | 0.625 | 1.625 | 2.750 |
| 4 | 1 | 1 | 7/8 - 14 | 3/4-16 | 1 - 14 | 1.125 | 0.938 | 0.375 | 0.688 | 0.950 | 1.499 | 7/8 | 0.375 | 2.500 | 0.938 | 0.500 | 1.375 | 2.375 |
| 4 | 3 | 1-3/8 | 1-1/4-12 | 1 - 14 | 1-3/8-14 | 1.625 | 1.063 | 0.375 | 0.875 | 1.320 | 1.999 | 1-1/8 | 0.375 | 3.250 | 1.313 | 0.750 | 1.625 | 2.750 |
| 5 | 1 | 1 | 7/8 - 14 | 3/4 - 16 | 1 - 14 | 1.125 | 0.938 | 0.375 | 0.688 | 0.950 | 1.499 | 7/8 | 0.500 | 2.500 | 0.938 | 0.500 | 1.375 | 2.375 |
| 5 | 3 | 1-3/8 | 1-1/4-12 | 1 - 14 | 1-3/8-14 | 1.625 | 1.063 | 0.375 | 0.875 | 1.320 | 1.999 | 1-1/8 | 0.500 | 3.250 | 1.313 | 0.750 | 1.625 | 2.750 |
