Single Rod Mounting Style T | NFPA 4MAJ Series Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators



 4MAJ T Small Bore Mounting Style




4MAJ Small Bore T Dimensions

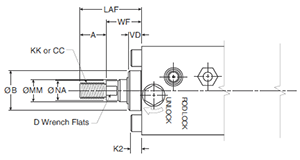

4MAJ Small Bore T Mount Head Dimensions

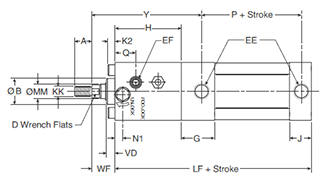

4MAJ Small Bore T Mount Body Dimensions

Style T

 Bore Size
Rod # Rod Dia. MM  Style 8 CC
Style 4 & 9 KK
Style 6
 A  AA +.000 -.002 B
D E EE (NPTF) EF (NPTF) G H J
1-1/2 1 5/8  1/2 -20  7/16-20  5/8 - 18 0.750  2.02  1.124 1/2 2.00 3/8 1/8 1.438 2.625 0.938
 2 1 5/8  1/2 - 20  7/16-20  5/8 - 18 0.750  2.60  1.124 1/2 2.50 3/8 1/8 1.375 2.875 0.937
 2 3 1  7/8 - 14 3/4 - 16  1 - 14  1.125  2.60  1.499 7/8 2.50 3/8 1/8 1.375 3.875 0.937
 2-1/2 1 5/8  1/2 - 20  7/16-20  5/8 - 18  0.750  3.10  1.124 1/2 3.00 3/8 1/8 1.344 2.875 0.938
 2-1/2 3 1  7/8 - 14  3/4 - 16  1 - 14  1.125  3.10  1.499 7/8 3.00 3/8 1/8 1.344 4.000 0.938
 3-1/4 1 1  7/8 - 14  3/4 - 16  1 - 14  1.125  3.90  1.499 7/8 3.75 1/2 1/4 1.594 4.500 1.125
 3-1/4 3 1-3/8  1-1/4-12  1 - 14  1-3/8-14  1.625  3.90  1.999 1-1/8 3.75 1/2 1/4 1.594 4.875 1.125
 4 1 1  7/8 - 14  3/4-16  1 - 14  1.125  4.70  1.499 7/8 4.50 1/2 1/4 1.594 4.875 1.125
4 3 1-3/8 1-1/4-12 1 - 14 1-3/8-14 1.625 4.70 1.999 1-1/8 4.50 1/2 1/4 1.594 5.125 1.125
5 1 1 7/8 - 14 3/4 - 16 1 - 14 1.125 5.80 1.499 7/8 5.50 1/2 1/4 1.594 5.375 1.219
5 3 1-3/8 1-1/4-12 1 - 14 1-3/8-14 1.625 5.80 1.999 1-1/8 5.50 1/2 1/4 1.594 5.750 1.219

 Bore Size
Rod # Rod Dia. MM  K2
LAF
N1 N2 Hex N3 NA NR Q  R VD WF Y LF P
1-1/2 1 5/8 0.250  1.75 0.220 0.140 5/16 0.563 0.190 0.715 1.43 0.375 1.000 4.500 6.250 2.313
2 1 5/8 0.313 1.75 0.340 0.130 1/2 0.563 0.265 0.895 1.84 0.375 1.000 4.750 6.500 2.313
2 3 1 0.313  2.50 0.338 0.146 1/2 0.938 0.275 1.065 1.84 0.500 1.375 6.125 7.500 2.313
2-1/2 1 5/8 0.313  1.75 0.346 0.150 1/2 0.563 0.265 0.755 2.19 0.500 1.000 4.813 6.625 2.375
2-1/2 3 1 0.313  2.50 0.346 0.148 1/2 0.938 0.265 1.120 2.19 0.500 1.375 6.313 7.750 2.375
3-1/4 1 1 0.375 2.50 0.631 0.180 5/8 0.938 0.340 1.510 2.76 0.500 1.375 6.938 8.750 2.625
3-1/4 3 1-3/8 0.375  3.25 0.813 0.247 5/8 1.313 0.350 1.645 2.76 0.625 1.625 7.563 9.125 2.625
4 1 1 0.375 2.50 0.625 0.240 7/8 0.938 0.500 1.725 3.32 0.500 1.375 7.313 9.125 2.625
4 3 1-3/8 0.375 3.25 0.771 0.276 7/8 1.313 0.490 1.679 3.32 0.750 1.625 7.813 9.375 2.625
5 1 1 0.500 2.50 0.720 0.220 7/8 0.938 0.500 1.995 4.10 0.500 1.375 7.813 9.875 2.875
5 3 1-3/8 0.500 3.25 0.720 0.220 7/8 1.313 0.490 2.330 4.10 0.750 1.625 8.438 10.250 2.875

Mounting Styles - Dimensions (Small Bore, Up to 5"):
