Tie Rods Extended Mounting Styles TB, TC & TD | NFPA 4MAJ Series, Rod Lock Option - 1-1/2" to 5" Bore Sizes | Tie Rod Cylinders | Pneumatic Actuators

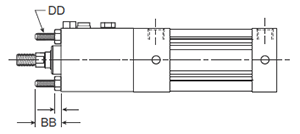

Style TB - Tie Rods Ext. Head End (NFPA MX3)
|
  |

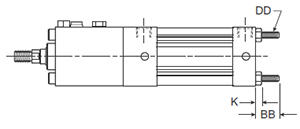

Style TC - Tie Rods Ext. Cap End (NFPA MX2)
|
|

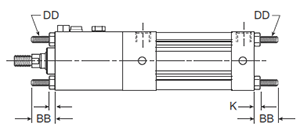

Style TD - Tie Rods Ext. Both Ends (NFPA MX1)
|
|
Styles TB, TC & TD
| Bore Size |
Rod # | Rod Dia. MM | AA | BB |
DD |
E |
K | R |
| 1-1/2 | 1 | 5/8 | 2.020 | 1.000 | 1/4 - 28 | 2.000 | 0.250 | 1.430 |
| 2 | 1 | 5/8 | 2.600 | 1.125 | 5/16 - 24 | 2.500 | 0.313 | 1.840 |
| 2 | 3 | 1 | 3.100 | 1.125 | 5/16 - 24 | 2.500 | 0.313 | 1.840 |
| 2-1/2 | 1 | 5/8 | 3.100 | 1.125 | 5/16 - 24 | 3.000 | 0.313 | 2.190 |
| 2-1/2 | 3 | 1 | 3.900 | 1.125 | 5/16 - 24 | 3.000 | 0.313 | 2.190 |
| 3-1/4 | 1 | 1 | 3.900 | 1.375 | 5/16 - 24 | 3.750 | 0.375 | 2.760 |
| 3-1/4 | 3 | 1-3/8 | 3.900 | 1.375 | 3/8 - 24 | 3.750 | 0.375 | 2.760 |
| 4 | 1 | 1 | 4.700 | 1.375 | 3/8 - 24 | 4.500 | 0.375 | 3.320 |
| 4 | 3 | 1-3/8 | 4.700 | 1.375 | 3/8 - 24 | 4.500 | 0.375 | 3.320 |
| 5 | 1 | 1 | 5.800 | 1.813 | 1/2 - 20 | 5.500 | 0.438 | 4.100 |
| 5 | 3 | 1-3/8 | 5.800 | 1.813 | 1/2 - 20 | 5.500 | 0.438 | 4.100 |
