Parker P1D Series

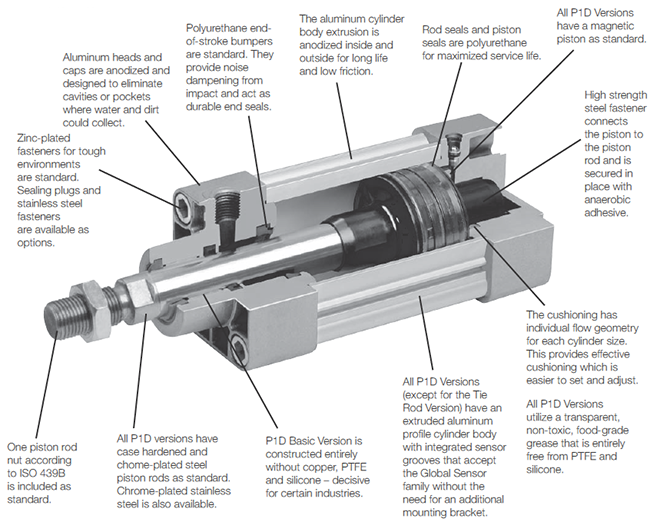

Features:

  • Double-acting cylinder with new air cushioning design
  • Corrosion resistant design
  • PUR seals for long service life
  • Drop-in sensors
  • Lubricated with food grade grease

Operating Information:

Operating Pressure -

  • 145 PSI (10 bar) maximum

Temperature Range -

  • Standard: -4°F to 176°F
  • High temperature: 14°F to 250°F

Cylinders for Low Pressure Hydraulic Operation -

  • ø32 - 125mm

ATEX Approval -

  • CE Ex IIGD c T4, 258°F

General Specifications (Basic Version):

  • Bore sizes - 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm, 160mm, 200mm
  • Meets ISO 6431, ISO 15552, VDMA 24562 & AFNOR installation standards
  • Min stroke 25mm (must specify Tie Rod version for strokes <25mm)
  • Max stroke 2800mm
  • 2 standard rod ends; specials available to order
  • Magnetic piston standard

Rod Lock Version Specifications:

  • 58 PSI (4 bar) required to unlock
  • Operating Temperature: 14°F to 167°F
Material Specs Removal Gland Design Variants P1D Cylinder Versions


Material Specifications for Standard Temperatures and Applications

Body Extrusion
 Clear anodized aluminum
End Covers
 Anodized aluminum
End Cover Inserts
 POM
End Cover Nuts/Screws
 Zinc-plated 8.8
Piston Rod Nut
 Zinc-plated steel
Piston Rod
 Chrome-plated steel
Rod Wiper Seal
 PUR
Piston Rod Bearing
 POM
Piston POM
Piston Bearing POM
Magnetic Ring Plastic-bound magnetic material
Piston Fastener Zinc-plated steel (composite piston)
Piston Seal PUR
O-Rings Nitrile rubber, NBR
End-of-stroke Bumpers and End Seals
 PUR
Cushioning Seals PUR
Cushioning Screws
 PA

Design Variants for Removable Gland Version

 High Temperature Seals
  Fluorocarbon
 High Temperature Piston  Aluminum (without magnetic ring)
 Low Pressure Rod Seal
  Buna Nitrile
 Low Pressure Rod Wiper
  PUR
 Low Pressure Piston Seals
  Buna Nitrile
 Low Pressure Piston
  Aluminum
 Metallic Rod Scraper/Wiper
  Dual-strength bronze wipers with nitrile or fluorocarbon energizer

P1D Cylinder Versions

Available Pneumatic Cylinder Styles

Tie-rod air cylinder - non-rotating Tie Rod Cylinders Guided Cylinders
Round Body Cylinders Rodless Cylinders
Compact Cylinders
