Parker P1D Series Pneumatic Tie Rod Cylinders - Basic & Standard Versions

P1D Basic Version

  • Bore Sizes - 32 - 125mm
  • Magnetic piston standard
  • Complies with ISO 6431, ISO/DIS 15552, VDMA 24562 & AFNOR dimensional standards
  • Integrated protected sensor grooves

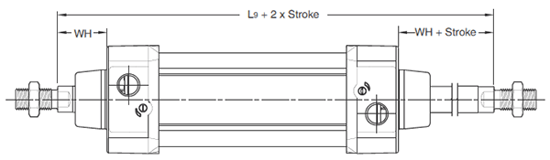

P1D Basic Body Dimensions 1

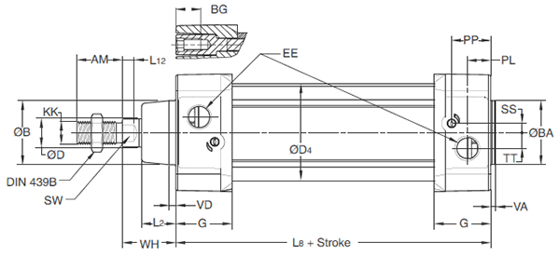

P1D Basic Head Dimensions

 P1D Basic Body Dimensions 2

Basic & Standard Version

 Bore Size
AM (mm)
B (mm)
BA (mm)
BG (mm)
D (mm)
D4 (mm)
E EE (BSPP*)
EE (NPTF/BSPT)
G (mm) KK L2 L8 L9 L12
32 22 30 30 16 12 5.0 50.0 G1/8 1/8 28.5 M10x1.25 16.0 94 146 6.0
40 24 35 35 16 16 52.0 57.4 G1/4 1/4 33.0 M12x1.25 19.0 105 165 6.5
50 32 40 40 16 20 60.7 69.4 G1/4 1/4 33.5 M16x1.5 24.0 106 180 8.0
63 32 45 45 16 20 71.5 82.4 G3/8 3/8 39.5 M16x1.5 24.0 121 195 8.0
80 40 45 45 17 25 86.7 99.4 G3/8 3/8 39.5 M20x1.5 30.0 128 220 10.0
100 40 55 55 17 25 106.7 116.0 G1/2 1/2 44.5 M20x1.5 32.4 138 240 10.0
125 54 60 60 20 32 134.0 139.0 G1/2 1/2 51.0 M27x2 45.0 160 290 13.0

 Bore Size
OA (mm)
PL (mm)
PP (mm)
R (mm)
RT
SS (mm)
SW (mm)
TT (mm)
VA (mm) VD (mm)
WH (mm)
32 6 13 21.8 32.5 M6 4.0 10 4.5 3.5 4.5 26
40 6 14 21.9 38.0 M6 8.0 13 5.5 3.5 4.5 30
50 8 14 25.9 46.5 M8 4.0 17 7.5 3.5 4.5 37
63 8 16 27.4 56.5 M8 6.5 17 11.0 3.5 4.5 37
80 6 16 30.5 72.0 M10 0 22 15.0 3.5 4.5 46
100 6 18 35.8 89.0 M10 0 22 20.0 3.5 4.5 51
125 8 23 40.5 110.0 M12 0 27 17.5 3.5 6.5 65

* ISO 1179-1 with ISO 228-1 threads
