Parker P1D Series Pneumatic Tie Rod Cylinders - Clean Version

P1D Cylinders Clean Version

  • Bore Sizes - 32-125mm
  • Designed for the food industry with a convex shape, cushioning screw with positive geometry and sealing plugs for optimum hygiene
  • Complies with ISO 6431, ISO/DIS 15552, VDMA 24562 & AFNOR dimensional standards
  • Integrated protected sensor grooves

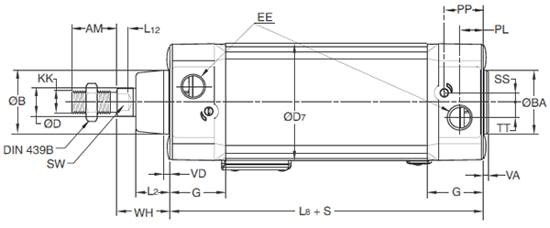

P1D Clean Version Head DimensionsP1D Clean Version Body Dimensions

Clean Version

 Bore Size
AM (mm)
B (mm)
BA (mm)
D (mm)
D5 (mm) D6 (mm)
E E1 (mm) E2 max (mm) EE (BSPP*)
EE (NPTF/BSPT)
G (mm) KK L2 L8 L12
32 22 30 30 12 36 5.3 50.0 32 5 G1/8 1/8 28.5 M10x1.25 16.0 94 6.0
40 24 35 35 16 45 5.3 57.4 36 6 G1/4 1/4 33.0 M12x1.25 19.0 105 6.5
50 32 40 40 20 55 7.1 69.4 42 6 G1/4 1/4 33.5 M16x1.5 24.0 106 8.0
63 32 45 45 20 68 7.1 82.4 49 5 G3/8 3/8 39.5 M16x1.5 24.0 121 8.0
80 40 45 45 25 85 8.9 99.4 57 5 G3/8 3/8 39.5 M20x1.5 30.0 128 10.0
100 40 55 55 25 105 8.9 116.0 68 6 G1/2 1/2 44.5 M20x1.5 32.4 138 10.0
125 54 60 60 32 132 10.7 139.0 81 6 G1/2 1/2 51.0 M27x2 45.0 160 13.0

 Bore Size
OA (mm)
PL (mm)
PP (mm)
R (mm)
RT
SS (mm)
SW (mm)
TT (mm)
VA (mm) VD (mm)
WH (mm)
32 6 13 21.8 32.5 M6 4.0 10 4.5 3.5 4.5 26
40 6 14 21.9 38.0 M6 8.0 13 5.5 3.5 4.5 30
50 8 14 25.9 46.5 M8 4.0 17 7.5 3.5 4.5 37
63 8 16 27.4 56.5 M8 6.5 17 11.0 3.5 4.5 37
80 6 16 30.5 72.0 M10 0 22 15.0 3.5 4.5 46
100 6 18 35.8 89.0 M10 0 22 20.0 3.5 4.5 51
125 8 23 40.5 110.0 M12 0 27 17.5 3.5 6.5 65

* ISO 1179-1 with ISO 228-1 threads
