Parker P1D Series Pneumatic Tie Rod Cylinders - 3 & 4-Position Duplex Cylinders

3 and 4-Position Duplex Cylinders

  • Bore Sizes - 32-125mm
  • Two cylinders back to back - same stroke results in 3-position cylinder, different strokes results in 4-position cylinder
  • Factory fitted P1D tie-rod version cylinders must be ordered as special
  • Installation mounting kit available for bores 32-100mm
  • Tie-rod version also available as a tandem cylinder

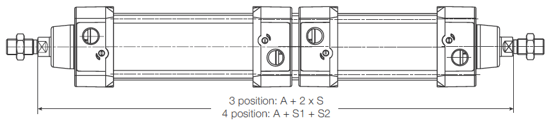

P1D 3 or 4-Position Duplex Cylinder Dimensions

3 and 4-Position Duplex Cylinders

Cylinder Bore   A (mm)
P1D-T P1D-B
32 247 256
40 277 286
50 293 306
63 323 336
80 355 373
100 385 403
125 461 -
