Parker P1D Series Pneumatic Tie Rod Cylinders - Rod Lock with Manual Override - Version J

Rod Lock with Manual Override - Version J

  • Bore Sizes - 32-125 mm
  • Incorporates a powerful piston rod locking device that is available for rod lock release during non-production activities
  • Complies with ISO 6431, ISO/DIS 15552, VDMA 24562 & AFNOR dimensional standards
  • Integrated protected sensor grooves

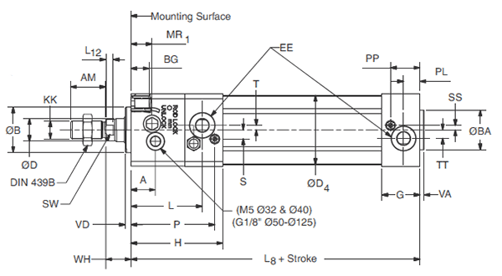

 P1D Rod Lock Manual Override Version J Head DimensionsP1D Rod Lock Manual Override Version J Body Dimensions

Rod Lock with Manual Override - Version J

 Bore Size
 A (mm) AM (mm)
 B (mm)
 BA (mm)
 BG (mm) D (mm)
 D4 (mm)
 E EE*
 G (mm) H KK L (mm) L8 L12 MR1 MR2
32 27.0 22 30 30 16 12 45.0 46.5 G1/8 28.5 71.5 M10x1.25 56.0 137 6.0 16.0 3.0
40 27.0 24 35 35 16 16 52.0 52.0 G1/4 33.0 77.0 M12x1.25 56.0 149 6.5 16.0 3.0
50 21.5 32 40 40 16 20 60.7 63.5 G1/4 33.5 80.5 M16x1.5 62.5 153 6.5 18.5 5.5
63 39.0 32 45 45 16 20 71.5 76.0 G3/8 39.5 96.5 M16x1.5 74.5 178 6.5 22.0 4.0
80 38.5 40 45 45 17 25 86.7 95.5 G3/8 39.5 110.5 M20x1.5 87.0 209 10.0 15.0 19.8
100 55.0 40 55 55 17 25 106.7 114.5 G1/2 44.5 132.5 M20x1.5 106.0 236 10.0 15.0 20.8
125 61.0 54 60 60 20 32 134.0 140.0 G1/2 51.0 145.0 M27x2 117.0 264 13.0 19.0 23.0

 Bore Size
 N (mm) NR (mm) OA (mm)
 P (mm) PL (mm)
 PP (mm)
 R (mm)
 RT
 S (mm) SS (mm)
 SW (mm)
 T (mm) TT (mm)
 VA (mm) VD (mm)
 WH (mm)
32 8 10.0 6 64.8 13 21.8 32.5 M6 7 6.5 10 2.5 4.5 3.5 4.5 15
40 8 10.0 6 68.0 14 21.9 38.0 M6 9 8.0 13 2.0 5.5 3.5 4.5 16
50 10 12.0 8 73.5 14 25.9 46.5 M8 8 4.0 17 4.0 7.5 3.5 5.0 17
63 10 12.0 8 89.5 16 27.4 56.5 M8 8 6.5 17 2.0 11.0 3.5 5.0 17
80 11 12.5 6 101.5 16 30.5 72.0 M10 9 0 22 5.0 15.0 3.5 14.0 20
100 11 12.5 6 123.5 18 35.8 89.0 M10 12 0 22 6.0 20.0 3.5 14.0 20
125 11 12.5 8 136.0 23 40.5 110.0 M12 12 0 27 6.0 17.5 5.5 16.0 27

 * ISO 1179-1 with ISO 228-1 threads
