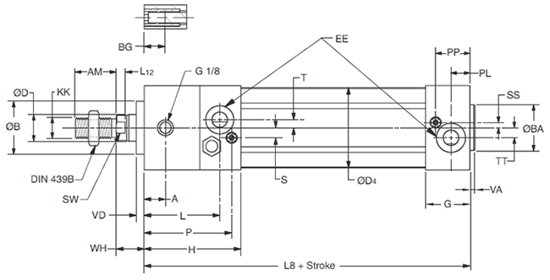

Parker P1D Series Pneumatic Tie Rod Cylinders - Rod Lock - Version R or L
Rod Lock - Version R or L
|
|
Rod Lock - Version R or L
| Bore Size |
AM (mm) |
B (mm) |
BA (mm) |
BG (mm) |
D (mm) |
D4 (mm) |
E | EE* |
G (mm) | H | KK | L (mm) | L8 | L12 |
| 32 | 16 | 22 | 30 | 30 | 12 | 45.0 | 46.5 | G1/8 | 28.5 | 71.5 | M10x1.25 | 56.0 | 137 | 6.0 |
| 40 | 16 | 24 | 35 | 35 | 16 | 52.0 | 52.0 | G1/4 | 33.0 | 77.0 | M12x1.25 | 56.0 | 149 | 6.5 |
| 50 | 18 | 32 | 40 | 40 | 20 | 60.7 | 63.5 | G1/4 | 33.5 | 80.5 | M16x1.5 | 62.5 | 153 | 6.5 |
| 63 | 26 | 32 | 45 | 45 | 20 | 71.5 | 76.0 | G3/8 | 39.5 | 96.5 | M16x1.5 | 74.5 | 178 | 6.5 |
| 80 | 35 | 40 | 45 | 45 | 25 | 86.7 | 95.5 | G3/8 | 39.5 | 110.5 | M20x1.5 | 87.0 | 209 | 10.0 |
| 100 | 50 | 40 | 55 | 55 | 25 | 106.7 | 114.5 | G1/2 | 44.5 | 132.5 | M20x1.5 | 106.0 | 236 | 10.0 |
| 125 | 60 | 54 | 60 | 60 | 32 | 134.0 | 140.0 | G1/2 | 51.0 | 145.0 | M27x2 | 117.0 | 264 | 13.0 |
| Bore Size |
OA (mm) |
P (mm) | PL (mm) |
PP (mm) |
R (mm) |
RT |
SS (mm) |
SW (mm) |
TT (mm) |
VA (mm) | VD (mm) |
WH (mm) |
| 32 | 6 | 64.8 | 13 | 21.8 | 32.5 | M6 | 7 | 10 | 4.5 | 3.5 | 4.5 | 15 |
| 40 | 6 | 68.0 | 14 | 21.9 | 38.0 | M6 | 9 | 13 | 5.5 | 3.5 | 4.5 | 16 |
| 50 | 8 | 73.5 | 14 | 25.9 | 46.5 | M8 | 8 | 17 | 7.5 | 3.5 | 5.0 | 17 |
| 63 | 8 | 89.5 | 16 | 27.4 | 56.5 | M8 | 6.5 | 17 | 11.0 | 3.5 | 5.0 | 17 |
| 80 | 6 | 101.5 | 16 | 30.5 | 72.0 | M10 | 0 | 22 | 15.0 | 3.5 | 4.0 | 20 |
| 100 | 6 | 123.5 | 18 | 35.8 | 89.0 | M10 | 0 | 22 | 20.0 | 3.5 | 4.0 | 20 |
| 125 | 8 | 136.0 | 23 | 40.5 | 110.0 | M12 | 0 | 27 | 17.5 | 5.5 | 6.0 | 27 |
* ISO 1179-1 with ISO 228-1 threads
