Tie-Rod Version (160-200mm) for Parker P1D Series Pneumatic Tie Rod Cylinders

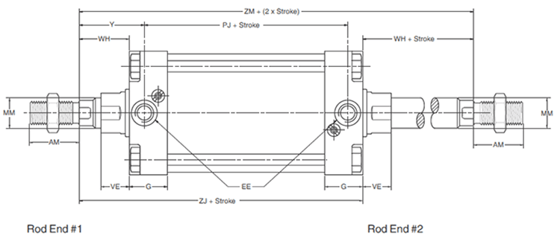

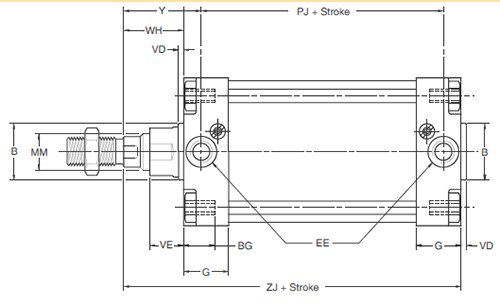

P1D Cylinders Tie-Rod Version (160-200mm)
|
|
![]() |
![]() |
Tie-Rod Version (160-200mm)
Bore Size |
AM (mm) |
B d11 (mm) |
BG (mm) |
DD (mm) |
E (mm) |
EE (BSPP*) |
EE (NPTF/BSPT) |
G (mm) | MM (mm) |
TG (mm) | VD (mm) | VE (mm) | WH (mm) | Y (mm) | PJ1 | ZJ1 | ZM2 |
160 | 72 | 65 | 24 | M16 | 177 | G3/4 | 3/4 | 54 | 40 | 140 | 6 | 56 | 80 | 105 | 130 | 260 | 340 |
200 | 72 | 75 | 24 | M16 | 214 | G3/4 | 3/4 | 54 | 40 | 175 | 6 | 56 | 95 | 120 | 130 | 275 | 370 |
1 Add stroke
2 Add 2x stroke
* ISO 1179-1 with ISO 228-1 threads
