Parker P1D Series Pneumatic Tie Rod Cylinders - Tie-Rod Version (32-125mm)
P1D Cylinders Tie-Rod Version (32-125mm)
|
|

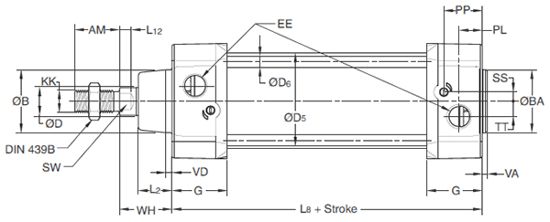

Tie-Rod Version (32-125mm)
Bore Size |
AM (mm) |
B (mm) |
BA (mm) |
D (mm) |
D5 (mm) | D6 (mm) |
E | EE (BSPP*) |
EE (NPTF/BSPT) |
G (mm) | KK | L2 | L8 | L12 |
32 | 22 | 30 | 30 | 12 | 36 | 5.3 | 50.0 | G1/8 | 1/8 | 28.5 | M10x1.25 | 16.0 | 94 | 6.0 |
40 | 24 | 35 | 35 | 16 | 45 | 5.3 | 57.4 | G1/4 | 1/4 | 33.0 | M12x1.25 | 19.0 | 105 | 6.5 |
50 | 32 | 40 | 40 | 20 | 55 | 7.1 | 69.4 | G1/4 | 1/4 | 33.5 | M16x1.5 | 24.0 | 106 | 8.0 |
63 | 32 | 45 | 45 | 20 | 68 | 7.1 | 82.4 | G3/8 | 3/8 | 39.5 | M16x1.5 | 24.0 | 121 | 8.0 |
80 | 40 | 45 | 45 | 25 | 85 | 8.9 | 99.4 | G3/8 | 3/8 | 39.5 | M20x1.5 | 30.0 | 128 | 10.0 |
100 | 40 | 55 | 55 | 25 | 105 | 8.9 | 116.0 | G1/2 | 1/2 | 44.5 | M20x1.5 | 32.4 | 138 | 10.0 |
125 | 54 | 60 | 60 | 32 | 132 | 10.7 | 139.0 | G1/2 | 1/2 | 51.0 | M27x2 | 45.0 | 160 | 13.0 |
Bore Size |
OA (mm) |
PL (mm) |
PP (mm) |
R (mm) |
RT |
SS (mm) |
SW (mm) |
TT (mm) |
VA (mm) | VD (mm) |
WH (mm) |
32 | 6 | 13 | 21.8 | 32.5 | M6 | 4.0 | 10 | 4.5 | 3.5 | 4.5 | 26 |
40 | 6 | 14 | 21.9 | 38.0 | M6 | 8.0 | 13 | 5.5 | 3.5 | 4.5 | 30 |
50 | 8 | 14 | 25.9 | 46.5 | M8 | 4.0 | 17 | 7.5 | 3.5 | 4.5 | 37 |
63 | 8 | 16 | 27.4 | 56.5 | M8 | 6.5 | 17 | 11.0 | 3.5 | 4.5 | 37 |
80 | 6 | 16 | 30.5 | 72.0 | M10 | 0 | 22 | 15.0 | 3.5 | 4.5 | 46 |
100 | 6 | 18 | 35.8 | 89.0 | M10 | 0 | 22 | 20.0 | 3.5 | 4.5 | 51 |
125 | 8 | 23 | 40.5 | 110.0 | M12 | 0 | 27 | 17.5 | 3.5 | 6.5 | 65 |
* ISO 1179-1 with ISO 228-1 threads
