Axial Valves | Parker
 |
Parker Axial Valves incorporate valve and actuation function. Many of the restrictions associated with traditional actuators are avoided by utilizing pneumatic or electro-pneumatic control. These compact valves are up to 50% smaller than valves with separate actuators.
|

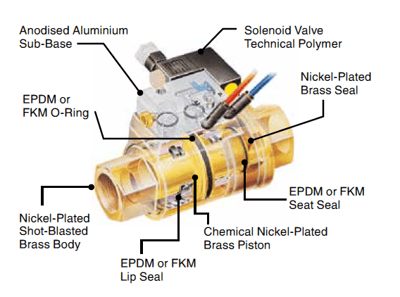

Axial Valve Series Features
- Nickel Plated Brass Body
- EPDM or FKM Seat Seals and O-Rings
- Anodized Aluminum Sub-Base for Solenoid Control
- Pressure Range: Up to 150 psi
- Vacuum Service: 29 inches Hg
- Pilot Pressure: NC - 60 to 115 psi
- Temperature Range: -4 to 275F
Available Configurations
|
Normally Closed, DoTble Female - NPT
|
Normally Closed, Double Female - BSPP
|
|
For information on sizes and pricing, please call us at 888.715.4673, email us at hfe@hfeweb.com or fill out a contact form on this page to get answers to your questions.
