Parker 4203 | Normally Closed, Female, NPT | Axial Valves

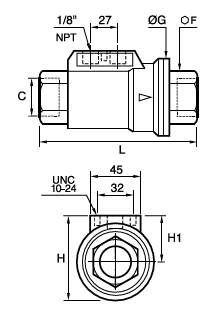

4203 Axial Valve NPT Dimensions



Axial Valve - Normally Closed, Female, NPT

Part #: 4203
Manufacturer: Parker






PART #

C

NPT

DN

F

MM

G

IN

H

IN

H1

IN

L

IN

LB.

4203 10 18 20

3/8

10

22 1.81 2.12 1.21 3.60 1.79

4203 15 22 20

1/2

15

27 2.03 2.33 1.31 4.13 2.39

4203 20 28 20

3/4

20

33 2.50 2.76 1.51 4.92 3.60

4203 25 35 20

1

25

41 2.72 2.99 1.63 5.31 4.46

4203 32 43 20

1-1/4

32

50 3.39 3.59 1.90 6.02 7.28

4203 40 50 20

1-1/2

40

60 3.78 4.01 2.12 6.67 9.22

4203 50 44 20

2

50

75 4.29 4.50 2.35 7.39 14.02

Pilot port: 1/8 - 27 NPT Complete with 1/8 NPT silencer
