Parker V502CS-X-21 Series Ball Valves | Carbon Steel Body, Oval Handle, Panel Mount, Female Pipe Ports

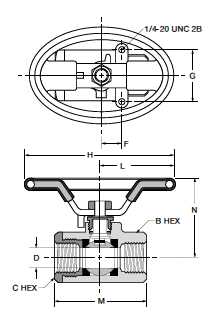

V502CS-X-21 Oval Handle Panel Mount Female Pipe Ends Ball Valve Dimensions



Ball Valve - Oval Handle, Panel Mount, Female Pipe Ends

Part #: V502CS-X-21

Working Pressure Rating: 1500 PSI

Manufacturer: Parker






PART #

PIPE THREAD

B

HEX

C

HEX

F

G

H

L

M

N

FLOW DIA D.

V502CS-20-21

1-1/4

2

2-1/4

.94

1.50

5.07 2.53 3.80 3.04 1.000

V502CS-24-21

1-1/2

2-5/16

2-1/2

.94

1.50

5.07 2.53 4.55 3.26 1.250

V502CS-32-21

2

2-3/4

3

1.03

2.00

6.50 3.25 4.83 3.57 1.500
