Services | BUILD PROGRAM - PARKER HYDRAULIC FILTERS

Hydraulic Filters Available in Build Program

WPF_World_Pressure_Filter_zm

WPF Series

High Pressure Inline Hydraulic Filters

The new industry standard in high pressure hydraulic filtration incorporating advanced features designed to improve system reliability. Allowable operating pressure of 7000 PSI/483 Bar and capable of flows up to 137 GPM/520 LPM depending on viscosity.

Materials:

  • Head: SG Iron
  • Bowl: Steel
  • Indicator: Stainless Steel with Plastic Connectors
15_40_80_CN_series_family_zm

CN Series

Medium Pressure Filters

Parker Filtration engineered the CN series of Medium pressure filters to satisfy demanding applications in the mobile and industrial markets throughout the world. With metric mounting and G thread ports, this series is truly a global design.

Materials:

  • Head and Bowl: Aluminum
  • Indicators: Aluminum Body, Plastic Connectors
  • Bypass: Nylon
Hydraulic Filter

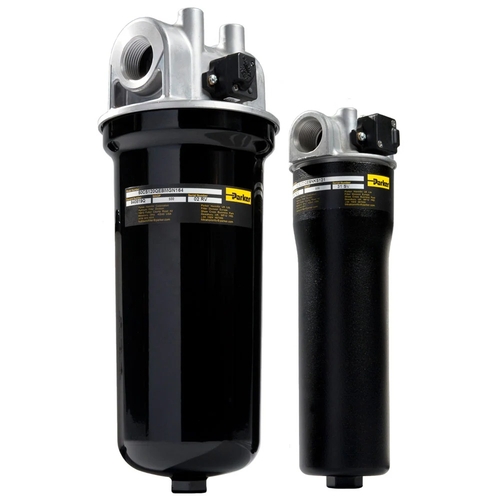

CS Series

Medium Pressure Inline Hydraulic Filters

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity

Materials:

  • Head: Cast Aluminum
  • Bypass valve: Nylon with Steel Spring
  • Filter element: Reinforced Polymer End Caps,
  • Microglass Media, and Polymer Pleat Support
  • Bowl: Cast Aluminum
  • Permanent core: Steel
Moduflow_family_zm

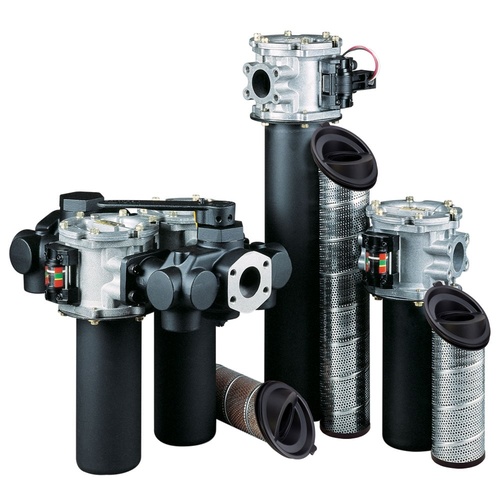

Moduflow™ Plus Series

Low Pressure Inline Hydraulic Filter

Parker's Moduflow™ Plus series suction/return/duplex patented filter element features longer life and increased dirt capacity. Allowable operating pressure of 200PSI/13.8Bar and capable of flows up to 150GPM/581LPM depending on viscosity.

Materials:

  • Head, Cover, Flanges: Die cast aluminum
  • Bowl: Steel
PT-Series_zm

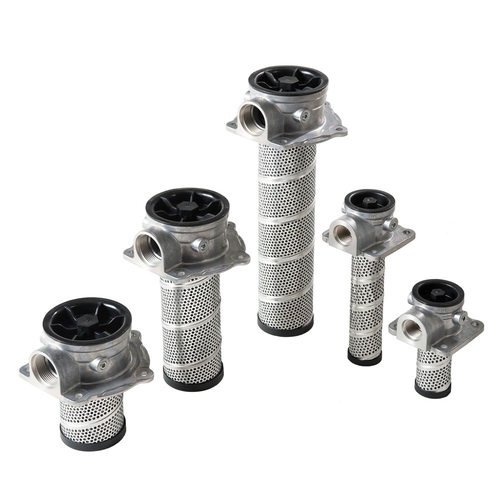

PT Series

Low Pressure Tank Top Hydraulic Filter

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Materials:

  • Tank Flange: Aluminum
  • Endcaps: Nylon
GLF_webshere_product_series_zm

GLF Series

Low Pressure Tank Top Hydraulic Filter

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Materials:

  • Housing - Cast Aluminum Alloy
