77-Series Fittings Dimensional Changes Take Place July 2021 - January 2022

The Parker Hose Products Division announced yesterday dimensional changes affecting four 77 Series 90° elbow fittings.

The changes allow Parker to optimize their manufacturing process and meet certain ISO/SAE specifications. The change results in a different cut-off length.

The tentative schedule for manufacturing changes

  • Size -16 (July 2021)
  • Size -20 (Sept 2021)
  • Size -24 (Nov 2021)
  • Size -32 (Jan 2022)

The New Dimensions for 77-Series 90° Elbows
Sizes -16 & -20

parker-series-77-elbow-fitting-dimensions

Download Excel File
PN A
(in)		 A
(mm)		 B
(in)		 B
(mm)		 E
(in)		 E
(mm)
1J977-16-16 4.65 118.10 2.70 68.60
1J977-16-16-ZJ 4.65 118.10 2.70 68.60
16B77-16-16 5.42 137.60 3.47 88.10
16E77-16-16 5.34 135.60 3.39 86.10
16F77-16-16 5.07 128.80 3.12 79.30
16F77-16-16-ZJ 5.07 128.80 3.12 79.30
16G77-16-16 5.91 150.10 3.96 100.60
16M77-16-16 5.65 143.50 3.70 94.00
16N77-16-16 4.65 118.10 2.70 68.60
16N77-16-16-SL130 4.65 118.10 2.70 68.60
16N77-16-16-SL61 5.01 127.30 3.06 77.80
16N77-16-16-SL90 4.65 118.10 2.70 68.60
16N77-16-16-ZJ 4.65 118.10 2.70 68.60
16R77-16-16 4.65 118.10 2.70 68.60
16R77-16-16-SL130 4.65 118.10 2.70 68.60
16R77-16-16-SL152 4.65 118.10 2.70 68.60
16R77-16-16-SL165 4.65 118.10 2.70 68.60
16Z77-16-16-SL152 4.65 118.10 2.70 68.60
16J77-20-16-SL105 4.39 111.60 2.44 62.10
16N77-20-16 4.65 118.10 2.70 68.60 3.54 90.00
16N77-20-16-SL120 4.65 118.10 2.70 68.60
16N772016SL123SJ80 5.27 133.90 3.32 84.40
16N77-20-16-SL130 4.65 118.10 2.70 68.60
16N772016SL89SJ80 5.04 127.90 3.09 78.40
16N77-20-16-ZJ 4.65 118.10 2.70 68.60 3.54 90.00
16N77-24-16-SL72 4.65 118.10 2.70 68.60
11677-16-16 5.42 137.60 3.47 88.10
11777-16-16 5.07 128.80 3.12 79.30
11777-16-16-ZJ 5.07 128.80 3.12 79.30
11877-16-16 5.62 142.80 3.67 93.30
11977-16-16 4.65 118.10 2.70 68.60
11977-16-16-SL130 4.65 118.10 2.70 68.60
11977-16-16-ZJ 4.65 118.10 2.70 68.60
12677-16-16 5.35 135.80 3.40 86.30
12777-16-16 5.91 150.20 3.96 100.70
12U77-16-16 4.13 104.90 2.18 55.40
18977-16-16 4.65 118.10 2.70 68.60
18977-16-16-SL140 4.65 118.10 2.70 68.60
18977-16-16-SL152 4.65 118.10 2.70 68.60
1N977-16-16-SL160 4.65 118.10 2.70 68.60
11877-20-16 6.09 154.80 4.15 105.30 2.52 64.00
11977-20-16 4.65 118.10 2.70 68.60 3.54 90.00
11977-24-16 4.65 118.10 2.70 68.60
14N77-20-16 4.65 118.10 2.70 68.60 3.54 90.00
18977-20-16 4.65 118.10 2.70 68.60 5.51 140.00
13777-16-16 4.76 120.80 2.81 71.30
13777-20-16 5.07 128.80 3.12 79.30
13977-16-16 4.65 118.10 2.70 68.60
13977-16-16-SL86 4.65 118.10 2.70 68.60
13977-16-16-ZJ 4.65 118.10 2.70 68.60
13977-20-16 4.65 118.10 2.70 68.60
14177-16-16 4.65 118.10 2.70 68.60
14177-20-16 4.65 118.10 2.70 68.60
1J177-16-16 4.65 118.10 2.70 68.60
1J177-16-16-ZJ 4.65 118.10 2.70 68.60
1J177-20-16 4.65 118.10 2.70 68.60
1J577-16-16 4.65 118.10 2.70 68.60
1J677-16-16-SL10 5.02 127.50 3.07 78.00
1J777-16-16 4.76 120.80 2.81 71.30
1J777-16-16-ZJ 4.76 120.80 2.81 71.30
1J777-20-16 4.80 121.80 2.85 72.30
1J977-20-16 4.65 118.10 2.70 68.60
1K777-16-16 5.59 142.10 3.65 92.60
1K977-16-16 4.65 118.10 2.70 68.60
1K977-20-16 4.65 118.10 2.70 68.60
1X777-16-16 5.07 128.80 3.12 79.30
1X777-20-16 5.31 134.80 3.36 85.30 1.50 38.00
1X977-16-16 4.65 118.10 2.70 68.60
1X977-16-16-ZJ 4.65 118.10 2.70 68.60
1X977-20-16 4.65 118.10 2.70 68.60 3.54 90.00
16B77-20-16 5.74 145.90 3.80 96.40 0.59 15.00
16E77-20-16 5.64 143.30 3.69 93.80 0.87 22.00
16F77-20-16 5.31 134.80 3.36 85.30 1.50 38.00
16F77-20-16-ZJ 5.31 134.80 3.36 85.30 1.50 38.00
10C77-30-16-ZJ 5.11 129.80 3.16 80.30
11C77-25-16 4.65 118.10 2.70 68.60
1B277-16-16 4.65 118.10 2.70 68.60
1CE77-28-16 5.12 130.00 3.17 80.50
1CF77-28-16 4.65 118.10 2.70 68.60
1G177-16-16 4.95 125.80 3.00 76.30
1XB77-16-16 5.64 143.20 3.69 93.70
1XE77-16-16 5.56 141.30 3.61 91.80
1XF77-16-16 5.23 132.80 3.28 83.30
1XG77-16-16 5.93 150.70 3.98 101.20
1XM77-16-16 5.78 146.90 3.83 97.40
1XN77-16-16 4.65 118.10 2.70 68.60
1XR77-16-16-SL132 4.65 118.10 2.70 68.60
1XR77-16-16-SL150 4.65 118.10 2.70 68.60
1XB77-20-16 5.64 143.30 3.69 93.80
1XE77-20-16 5.53 140.40 3.58 90.90
1XF77-20-16 5.23 132.80 3.28 83.30
1XG77-20-16 6.07 154.10 4.12 104.60
1XM77-20-16 5.78 146.90 3.83 97.40
1XN77-20-16 4.65 118.10 2.70 68.60
1XR77-20-16-SL150 4.65 118.10 2.70 68.60
11677-20-16 5.74 145.90 3.80 96.40 0.59 15.00
11677-24-16-SL18 5.22 132.50 3.27 83.00
11777-20-16 5.31 134.80 3.36 85.30 1.50 38.00
12677-20-16 5.64 143.30 3.69 93.80 0.87 22.00
14F77-20-16 5.31 134.80 3.36 85.30 1.50 38.00
14F77-20-16-ZJ 5.31 134.80 3.36 85.30 1.50 38.00





Please contact us with any questions.


Published Tue, Aug 24, 2021 @ 08:22 AM
Related Articles

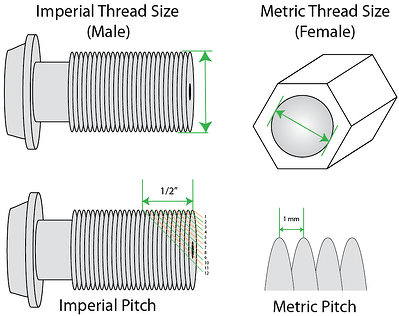

Brake Line Thread Identification Guide: Sizes, Charts, and Tips
