Parker Quick Coupling Division eliminated several part configurations and options from its PS series and S series swivels. Read on to see which product ranges and part numbers are no longer available, and how to use adapters to compensate for unavailable parts.
Affected PS and S Series Product Ranges
OBSOLETED PS SERIES SWIVEL PRODUCT RANGES |
|
| Body Sizes Eliminated | -4 (1/4”) -20 (1 1/4”) -24 (1-1/2”) -32 (2”) |
| Material and Finish Options Eliminated | 303 Stainless Steel 316 Stainless Steel Carbon Steel with Electroless Nickle Plating |
| Seal Options Eliminated | Aflas™ Ethylene Propylene Fluorocarbon Neoprene Perfluoroelastomer |
| Port Configurations Eliminated (Shaft) | 02 = Female NPTF 10 = Female SAE Straight Thread |
| Port Configurations Eliminated (In-Line Housing) |
01 = Male NPTF 03 = Male JIC 37 Degrees 05 = Male SAE O-Ring Straight Thread 07 = Female NPSM Pipe Swivel 10 = Female SAE Straight Thread |
| Port Configurations Eliminated (In-Line Housing) |
01 = Male NPTF 05 = Male SAE O-Ring Straight Thread 06 = Female JIC 37 Degrees |
OBSOLETED S SERIES SWIVEL PRODUCT RANGES |
|
| Body Sizes Eliminated | -16 (1”) |
| Finish Options Eliminated | Carbon Steel with Electroless Nickle Plating |
| Seal Options Eliminated | Ethylene Propylene Flourocarbon |
| Port Configurations Eliminated (Shaft) | 23 = Male JIC 37 Degrees |
| Port Configurations Eliminated (Housing) | 01 = Male NPTF 05 = Male SAE O-Ring Straight Thread 10 = Female SAE Straight Thread |
Obsoleted PS and S Series Part Numbers
OBSOLETED PS SERIES |
OBSOLETED S SERIES |
||||
| PS1210102-12-12Y | PS1690202-16-16Y | PS490503-4-4 | S2101-12-12 | S2201-8-8 | S2303-10-10 |
| PS1210202-12-12 | PS1690203-16-16 | PS490510-4-4 | S2101-4-4 | S2202-12-12 | S2303-12-12 |
| PS1210203-12-12 | PS1690207-16-16 | PS4-RPR | S2101-6-6 | S2202E-4-4 | S2303-16-16 |
| PS1210306-12-12Y | PS1690306-16-16 | PS610102-6-6Y | S2101-8-8 | S2203-16-16 | S2303-6-6 |
| PS1210310-12-12 | PS1690507-16-16 | PS610202-6-6 | S2102-6-4 | S2203-6-6 | S2307-4-4 |
| PS1290103-12-12Y | PS2410202-20-20 | PS610510-6-6 | S2103-16-16 | S2203-8-8 | S2501-6-6 |
| PS1290107-12-12 | PS2410202-24-24 | PS690107-6-6 | S2103-4-5 | S2207-12-12 | S2503-16-16 |
| PS1290202-12-12 | PS2490202-24-24 | PS690202-6-6 | S2103-4-6 | S2207-16-16 | S2503-4-4 |
| PS1290203-12-12 | PS2490203-20-20 | PS690203-6-6 | S2103-6-8 | S2207-4-4 | S2507-10-8 |
| PS1290207-12-12 | PS2490303-24-24 | PS690306-6-6 | S2107-16-16 | S2207-6-6 | S2507-12-12 |
| PS1290305-12-12 | PS24-RPR | PS690502-6-6 | S2201-12-12 | S2207-8-8 | S2507-16-16 |
| PS1290306-12-12 | PS24Y-RPR | PS810202-8-8 | S2201-4-4 | S2301-8-8 | S2510-12-12 |
| PS1290507-12-12 | PS410102-4-4 | PS810303-10-10 | S2201-6-6 | ||
| PS1290510-12-12Y | PS410103-4-4 | PS810310-8-8 | |||
| PS1610103-16-16 | PS410202-4-4 | PS810510-8-8 | |||
| PS1610202-16-16 | PS410306-4-4 | PS811010-8-8 | |||
| PS1610303-16-16 | PS410503-4-4 | PS890106-8-8 | |||
| PS1610310-16-16 | PS411010-4-4 | PS890107-8-8 | |||
| PS1610503-16-16 | PS490103-4-4 | PS890202-8-8 | |||
| PS1611010-16-16 | PS490107-4-4 | PS890203-8-8 | |||
| PS1690106-16-16 | PS490110-4-4 | PS890207-8-8 | |||
| PS1690107-16-16 | PS490202-4-4 | PS890210-8-8 | |||
| PS1690107-20-20 | PS490305-4-4 | PS890306-8-8 | |||
| PS1690202-16-16 | PS490502-4-4 | PS890503-10-10 | |||
Updated PS & S Series Ordering Guides

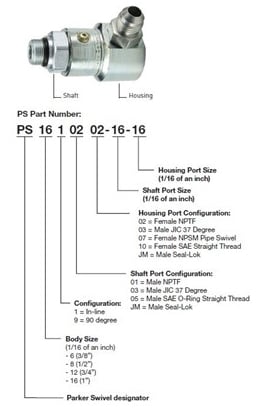

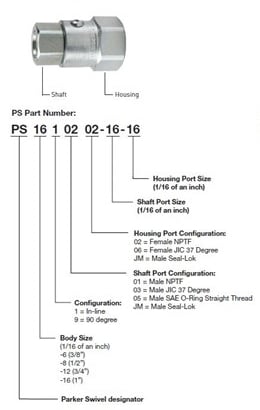

PS Series Part Number Guide |

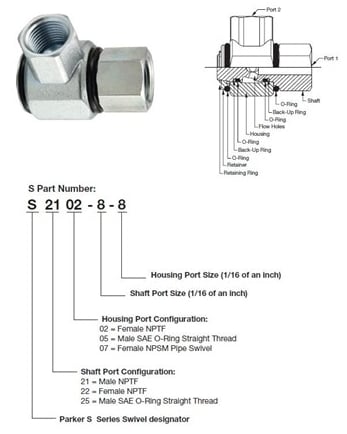

S Series Part Number Guide |
||
|
In-Line Swivels
|
90° Swivels
|
90° Swivels
|
|

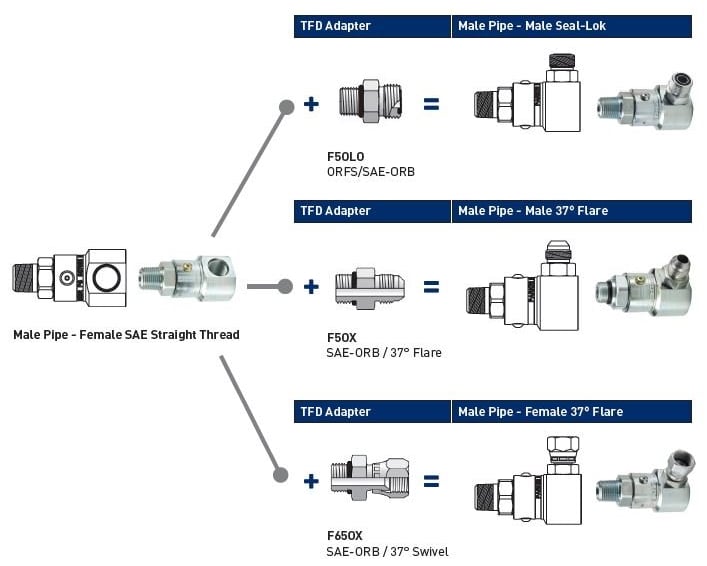

Workaround for Obsoleted PS & P-Series Swivels
To compensate for PS Series Swivel configurations being discontinued, use adapters as illustrated in an example below:
