Wireless Pressure Sensors | Parker SensoNode Mobile

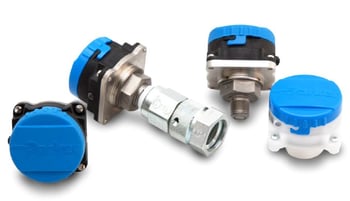

 SensoNode Pressure Sensors

 FEATURES

  • For commonly used pressures
    Ranges: 0-150 psi, 0-3625 psi, 0-5800 psi
  • User definable measurement units
    (psi or bar)
  • Ports: FNPT, MNPT, couplings (push-button, sleeve operated, EMA3)
  • Corrosion resistant materials
Back to SensoNode Main Page

 Technical Data

PRESSURE SENSORS  SensoNode 150 PSI Black SensoNode 150 PSI White  SensoNode 3625 PSI  SensoNode 5800 PSI
Pressure Range 0-150 PSI  0-150 PSI  0-3625 PSI  0-5800 PSI
Max Overload 3x 3x 1.5x 1.5x
Burst Pressure 4x 4x 4x 4x
Accuracy  0.75% 0.75%  0.75% 0.75%
Resolution  0.03 psi 0.03 psi 0.1 psi 0.1 psi
Scan/Transmit Rate 5 secs 5 secs 2 secs 2 secs
Error  2% 2% 2% 2%
Ambient Temp Range  -4° to 167°F  -4° to 167°F -4° to 167°F  -4° to 167°F
Media Temp Range  -40° to 185°F -40° to 185°F   -40° to 185°F  -40° to 185°F



SensoNode Part Numbers

NPTF Port

SensoNode Pressure NPTF

 Part Number  Pressure Rating (PSI)  Port  Body Color
 SNPT-10-B-4FP-KB  0-150 1/4" Female NPTF Black
 SNPT-10-B-4FP-WB  0-150 1/4" Female NPTF White
 SNP-250-B-4MP-KB  0-3625 1/4" Male NPTF Black
 SNP-400-B-4MP-KB 0-5800  1/4" Male NPTF Black

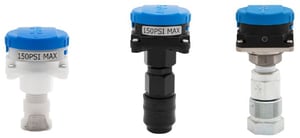

Quick Disconnect Ports

SensoNode Pressure QC

 Part Number  Pressure Rating (PSI)  Port  Body Color
 SNPT-10-B-4FP-WB-QL1  0-150  PPL  White
 SNPT-10-B-4FP-KB-QS1  0-150  Spectrum  Black
 SNP-250-B-4MP-KB-QE1  0-3625  EMA Black
 SNP-400-B-4MP-KB-QE1  0-5800 EMA Black

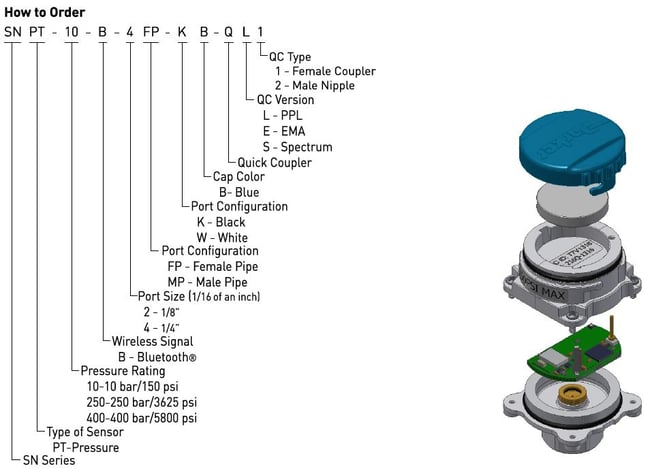

Part Number Nomenclature

 SensoNode Pressure Part Numbers
