Parker Karrykrimp 2 Portable Crimper

NOTE: Parker Karrykrimp 2 is no longer produced. It was replaced by newer Karrykrimp 2 Modular crimper, which can be either mounted to a bench or used with a stand for portability.

Parker Crimper Advantage

With Parker crimping equipment, anyone can make factory quality hose assemblies quickly, easily and cost effectively.

  • Parker's eight segment crimp dies provide a smooth, even 360 degree crimp.
  • Bottom-loading operation makes it easy to handle long hose assemblies.
  • Parker dies are linked to keep die segments together - no loose parts to mismatch.
  • Parker dies are color-coded for easy identification and fast set-up.
  • Parker's exclusive Parkalign feature positions the fitting in the dies perfectly every time.

Parker portable crimpers

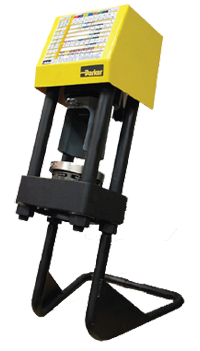

Parker Karrykrimp 2 crimper

Parker Karrykrimp 2

Features: Portable, compact rugged design; Numerous power unit options available; Pivoting pusher design for easy die change out.

Dimensions: 14” wide, 15” deep, 30” high

Weight: 100 lbs (without power unit)

Rating: 60 ton force @ 10,000 psi maximum

Cycle time: 20 seconds

Use with hoses: 351TC, 351ST, 422, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 421WC, 302/301, 301LT, 304, 341, 381, 601, 604, 881, 701, F42 (-8 ONLY), 711, 721, 721TC, 721ST, 772TC, 772ST, 774, 731, 78C, 781, 782TC, 782ST, 213, 285, 293, 201, 206, 221FR, 225, 244, 266, CAH, SS25UL, 811, 811HT, 881, AX, BXX

Fitting series: 25, 26, 43, 81 and HY Series

Sizes: 1/4" - 1-1/4"
